C.C.P. Contact Probes Co., LTD.

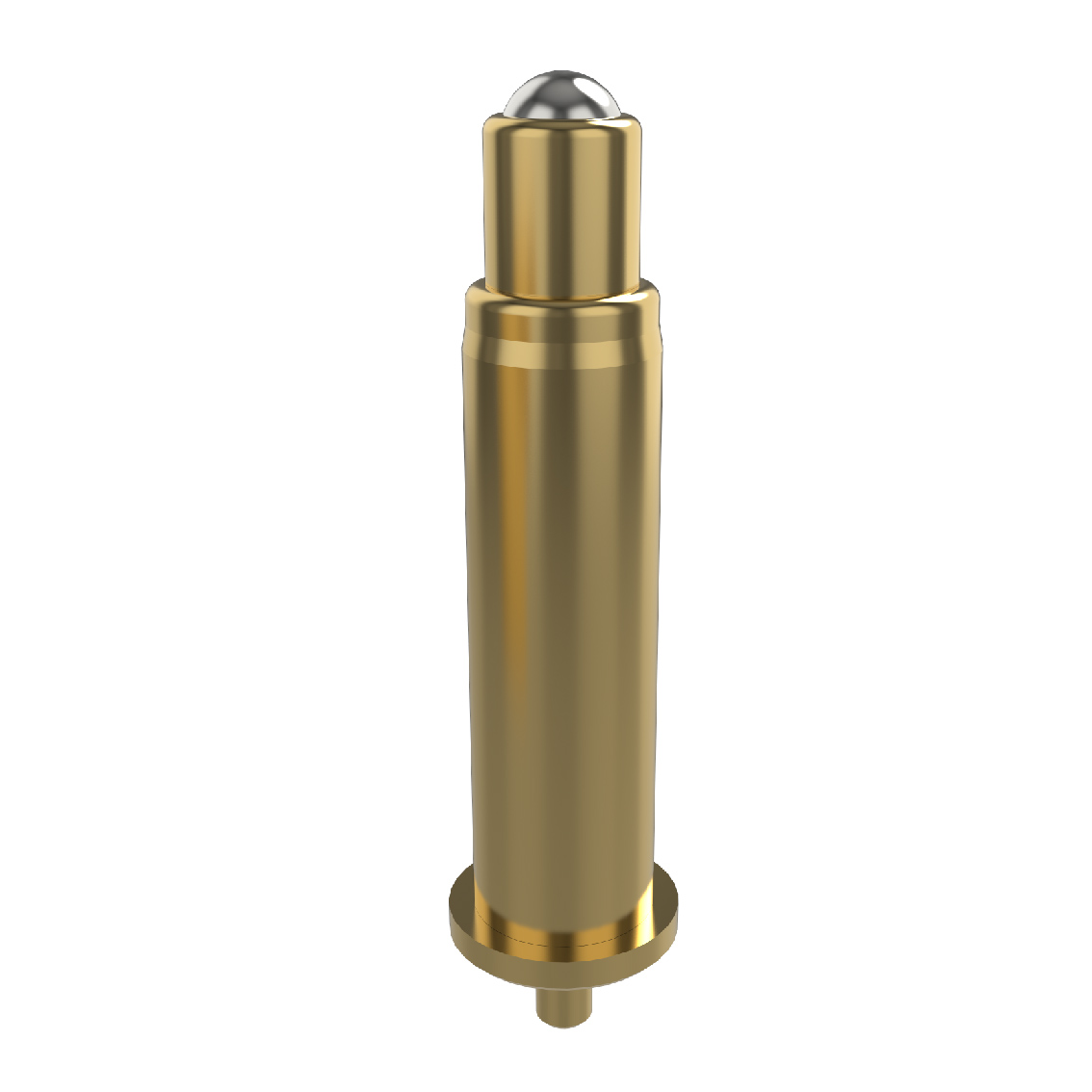

11.6 mm, Ball Point Pin, 10.6 mm Working Height
11.6 mm, Ball Point Pin, 10.6 mm Working Height
| Category |
Ball Point Connectors
|
| Part Number | P6353PP02 |
| Length | 11.60 |
| Working Height | 10.60 |
| Pin Direction | Vertical |
| Pin Tail | Soldering Cup |
| Pin Amount | 1 |
| Pitch | 0.00 |
| Rated Current | 2 |
| Contact Resistance | 50 mΩ |
| Datasheet | P6353PP02-Model.pdf |
| 3D CAD | P6353PP02.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Nickle/Au |
| Barrel Base | Brass |
| Barrel Plating | Nickle/Au |
| Spring Base | SUS |
| Housing | n/a |
| Rated Current | 2 A |
| Rated Voltage | 12 V |
| Contact Resistance | 50 mΩ |
| Spring Force | 90 g ± 20% |
| Life Cycle | 10000 |
Description
P6353PP02
Ballpoint Design Contact Pin for Rolling and Rotating Connection
