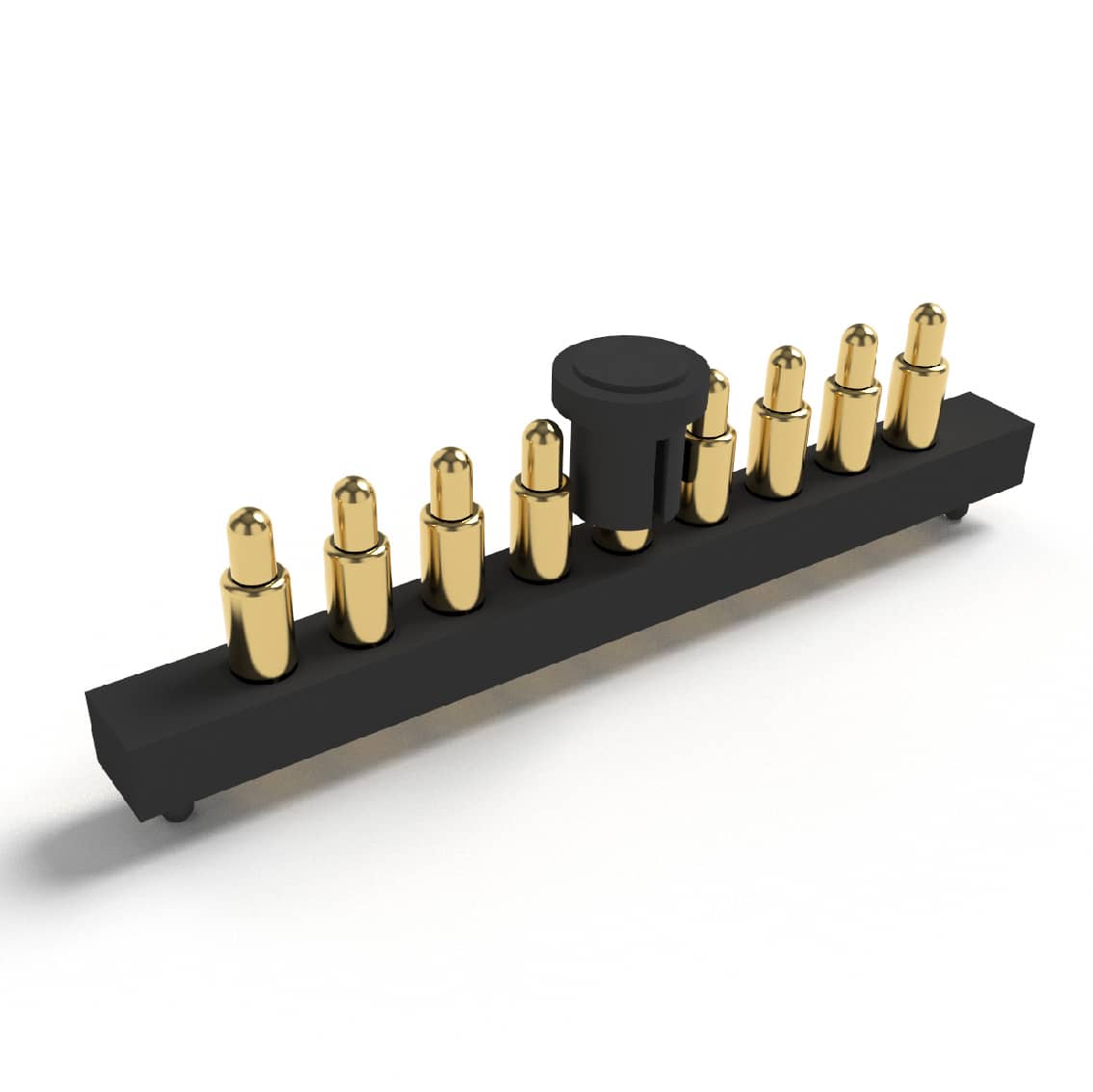

6.5 mm, 9 Pins, Non Standard Connectors, 5.2 mm Working Height, Pitch 2.54 mm
Category |
Non Standard Connectors
|
Part Number |
P2839MF01-09F254MR |
Length |
6.50 |
Working Height |
5.20 |
Pin Direction |
Vertical
|
Pin Amount |
9 |
Pitch |
2.54 |
Rated Current |
1 |
Contact Resistance |
50 mΩ |
Product Specifications
Plunger Base |
Brass |
Plunger Plating |
Nickle/Au |
Barrel Base |
Brass |
Barrel Plating |
Nickle/Au |
Spring Base |
SUS304 |
Housing |
HTN |
Rated Current |
1 A |
Rated Voltage |
24 V |
Contact Resistance |
50 mΩ |
Spring Force |
100 g ± 20% |
Life Cycle |
10000 |
Description
P2839MF01-09F254MR
