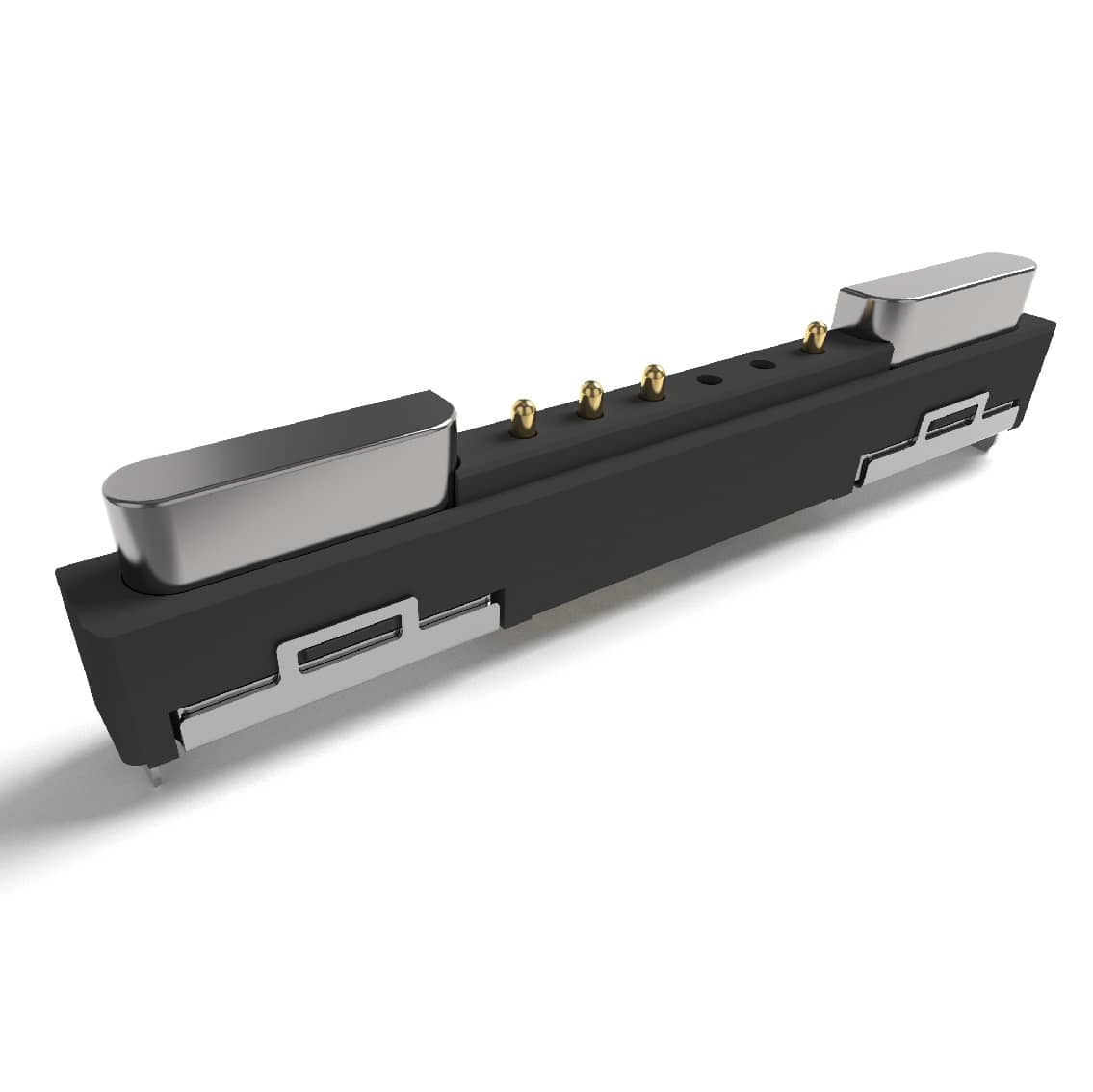

6.65 mm, 6 Pins, Non Standard Connectors, 5.18 mm Working Height, Pitch 2.4 mm

6.65 mm, 6 Pins, Non Standard Connectors, 5.18 mm Working Height, Pitch 2.4 mm
Category
Non Standard Connectors
Part Number P2197MP01-06C240MR
Length 6.65
Working Height 5.18
Pin Direction Vertical
Pin Tail Soldering Cup
Pin Amount 6
Pitch 2.40
Rated Current 2
Contact Resistance 50 mΩ
Get a Quotation
Lead Time 28

Product Specifications

Plunger Base Brass
Plunger Plating Nickle/Au
Barrel Base Brass
Barrel Plating Nickle/Au
Spring Base SUS304
Housing HTN
Rated Current 2 A
Rated Voltage 12 V
Contact Resistance 50 mΩ
Spring Force 90 g ± 20%
Life Cycle 10000

Description

P2197MP01-06C240MR Cover:SUS 304 Hook:SUS 304 Rubber:耐高溫橡膠 肖氏硬度80±5 Pogo Pin Working Stroke: 0.80mm
