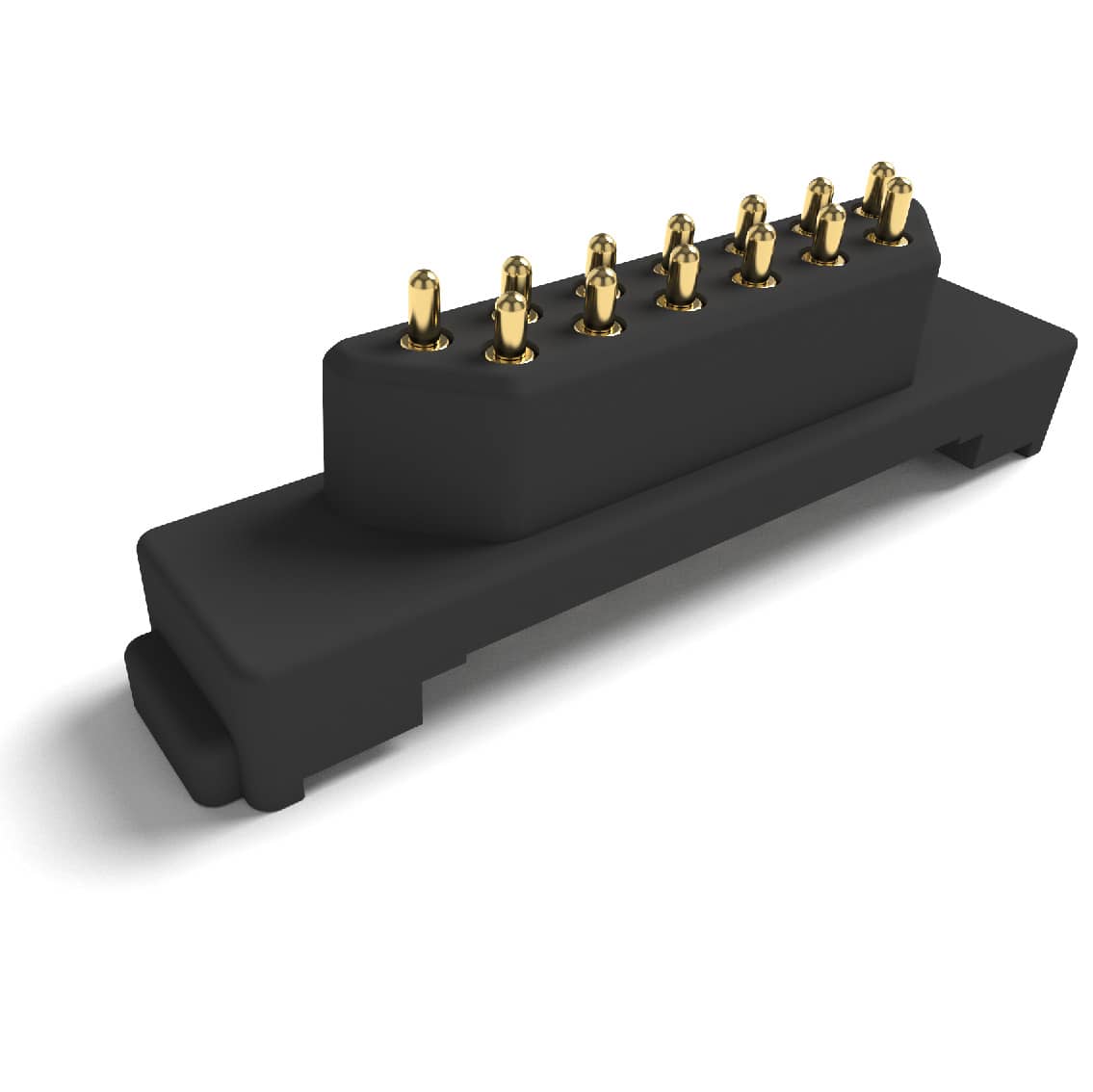

7.7/7.5 mm, 13 Pins, Non Standard Connectors, 6.6 mm Working Height, Pitch 1.05 mm
Category |
Non Standard Connectors
|
Part Number |
P1179AA17-13B210HR |
Working Height |
6.60 |
Pin Direction |
Vertical
|
Pin Amount |
13 |
Pitch |
1.05 |
Rated Current |
2 |
Contact Resistance |
50 mΩ |
Product Specifications
Plunger Base |
Brass |
Plunger Plating |
Nickle/Au |
Barrel Base |
Brass |
Barrel Plating |
Nickle/Au |
Spring Base |
SUS304 |
Housing |
HTN |
Rated Current |
2 A |
Rated Voltage |
12 V |
Contact Resistance |
50 mΩ |
Spring Force |
140&120 g ± 20% |
Life Cycle |
10000 |
Description
P1179AA17-13B210HR
Long Pin Spring Force: 140g at Normal Working Height
Short Pin Spring Force: 120g at Normal Working Height
Pogo Pin Working Angle ±4.5° at Working range
