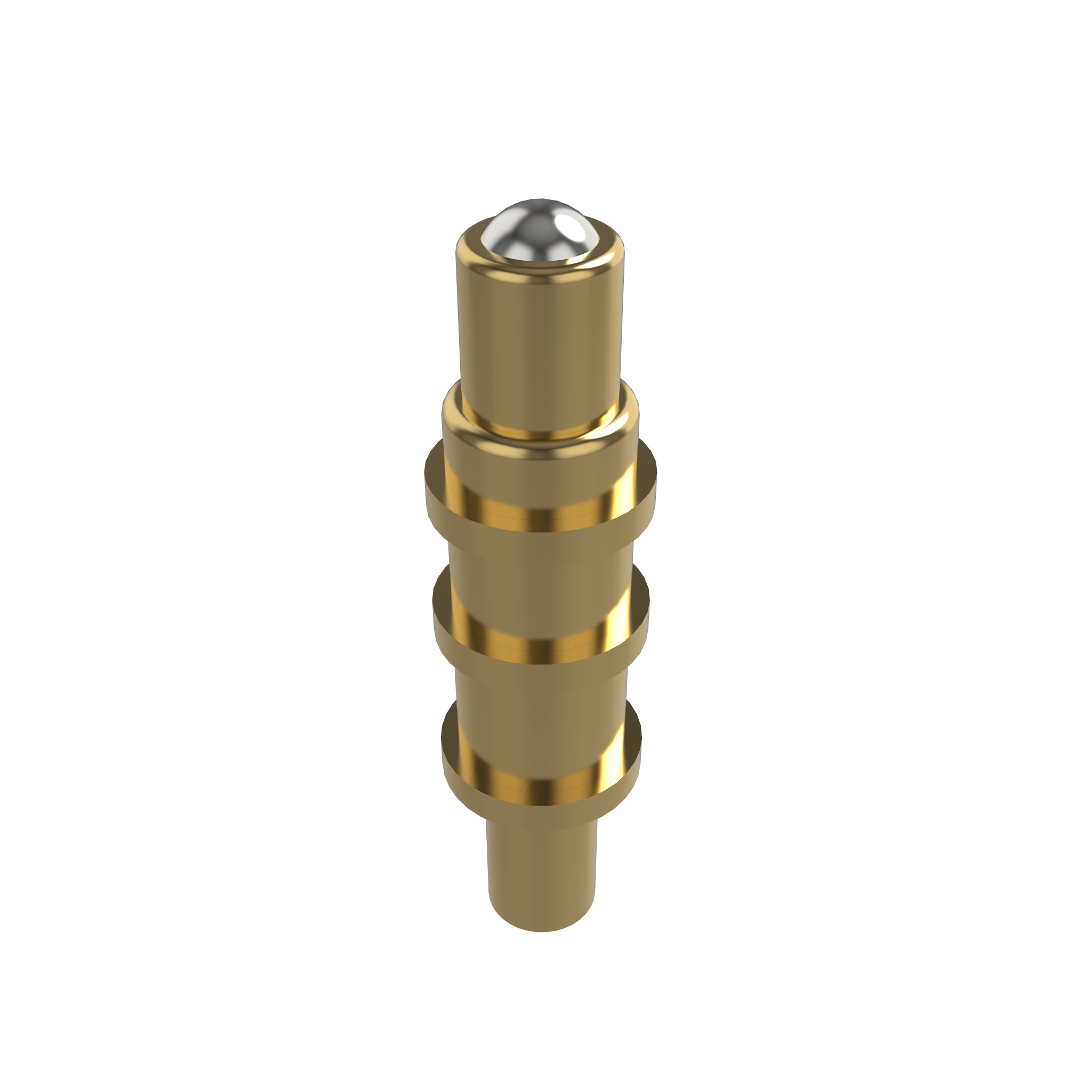

P07319PP2, Ball Point Pogo Pin, 7.8mm Working Height
P07319PP2, Ball Point Pogo Pin, 7.8mm Working Height
Category |
Ball Point Connectors
|
Part Number | P07319PP2 |
Length | 8.40 |
Working Height | 7.80 |
Pin Direction | Vertical |
Pin Tail | Tail |
Rated Current | 3 |
Max Outer Diameter (mm) | 2.90 |
Contact Resistance | 100 mΩ |
Datasheet | P07319PP2.pdf |
3D CAD | P07319PP2.STEP |
Get a Quotation
Lead Time | 28 |
Product Specifications
Plunger Base | Brass |
Plunger Plating | Gold |
Barrel Base | Brass |
Barrel Plating | Gold |
Spring Base | SUS |
Rated Current | 3 A |
Rated Voltage | 12 V |
Contact Resistance | 100 mΩ |
Life Cycle | 10000 |
Description
Ball Point Connectors are ideal to connect to a moving target, or if the target shall be connected at an angle.
