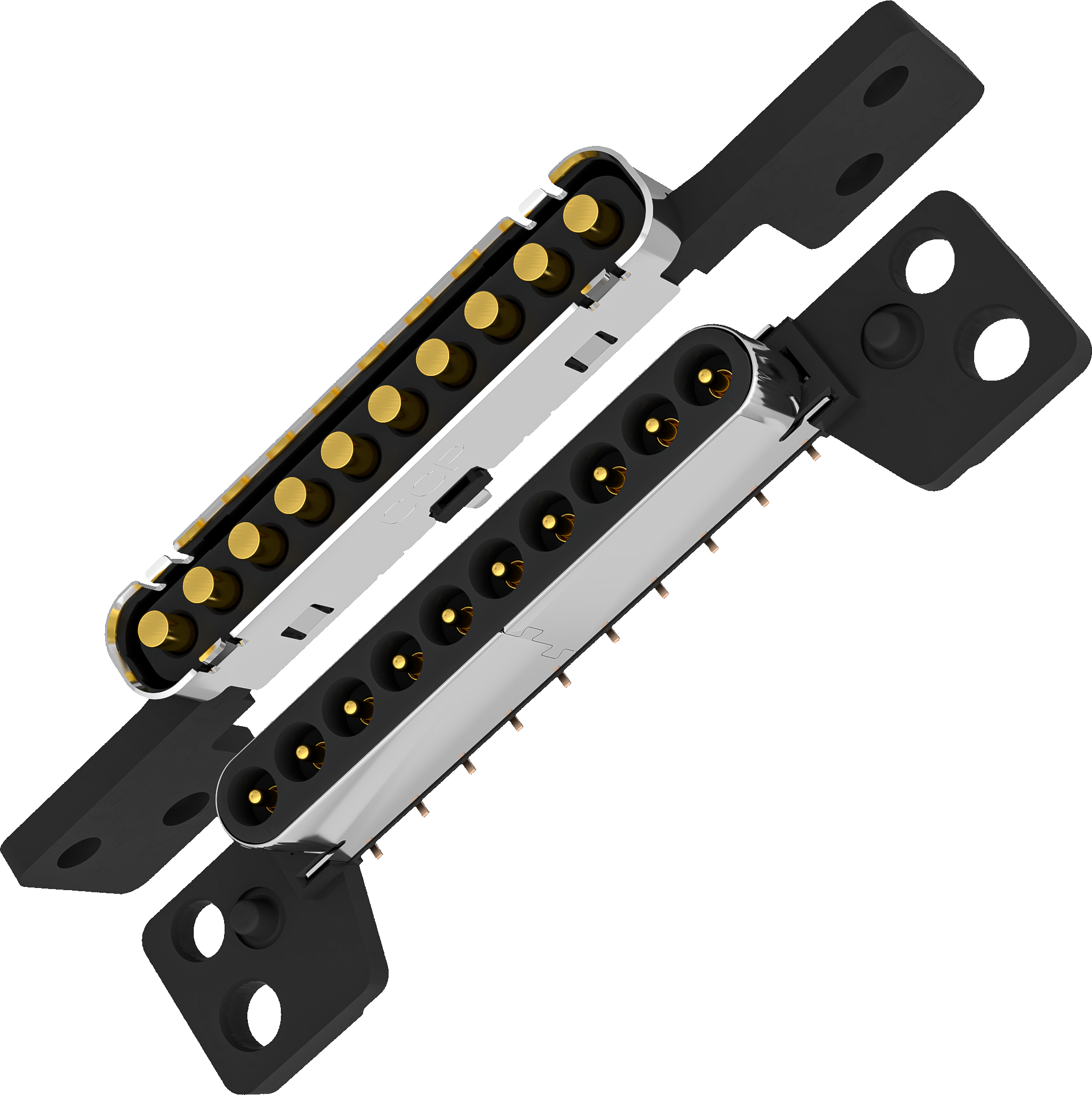

7.3mm, 10 Pins, High Frequency Connector, 5.9mm Working Height, Pitch 2.54

7.3mm, 10 Pins, High Frequency Connector, 5.9mm Working Height, Pitch 2.54
Category
High Frequency Connectors
Part Number HCS0528MM03
Length 7.30
Working Height 5.90
Pin Direction Vertical
Pin Tail With Pin Tail
Pin Amount 10
Pitch 2.54
Rated Current 5
Contact Resistance 50 mΩ

Product Specifications

Plunger Base Copper Alloy
Plunger Plating Nickel/Au
Barrel Base Brass
Barrel Plating Nickel/Au
Spring SUS
Housing Thermal Plastic, UL94V-0, Black
Rated Current 5 A
Rated Voltage 12V V
Contact Resistance 50 mΩ
Spring Force 100 g ± 20%
Life Cycle 10,000

Description

HCS0528MM03
