POGO PIN 커넥터
9.3 mm, 1 Pin, 8.3 mm Working Height, P2631PH03
홈 › Pogo Pin 커넥터 › 싱글핀 스프링 핀 › P2631PH03
Pogo Pin 커넥터
P2631PH03
Pogo Pin 커넥터
Part No.:P2631PH03
Length
9.30mm
Rated Current
2
Resistance
30 mΩmΩ
Download 2D Drawing Download 3D CAD Request Quote
Product Specifications
Length9.30 mm
Working Height8.30 mm
Pin OrientationVertical
Number of Pins1
Pitch0.00 mm
Rated Current2 A
Contact Resistance30 mΩ
Lead Time28 days
Plunger Base MaterialBrass
Plunger PlatingNickel/Au
Barrel Base MaterialBrass
Barrel PlatingNickel/Au
Spring Base MaterialSUS304
Housingn/a
Rated Voltage12 V
Spring Force75 g ± 20%
Life Cycles10000 cycles
Related Products

Related Probes

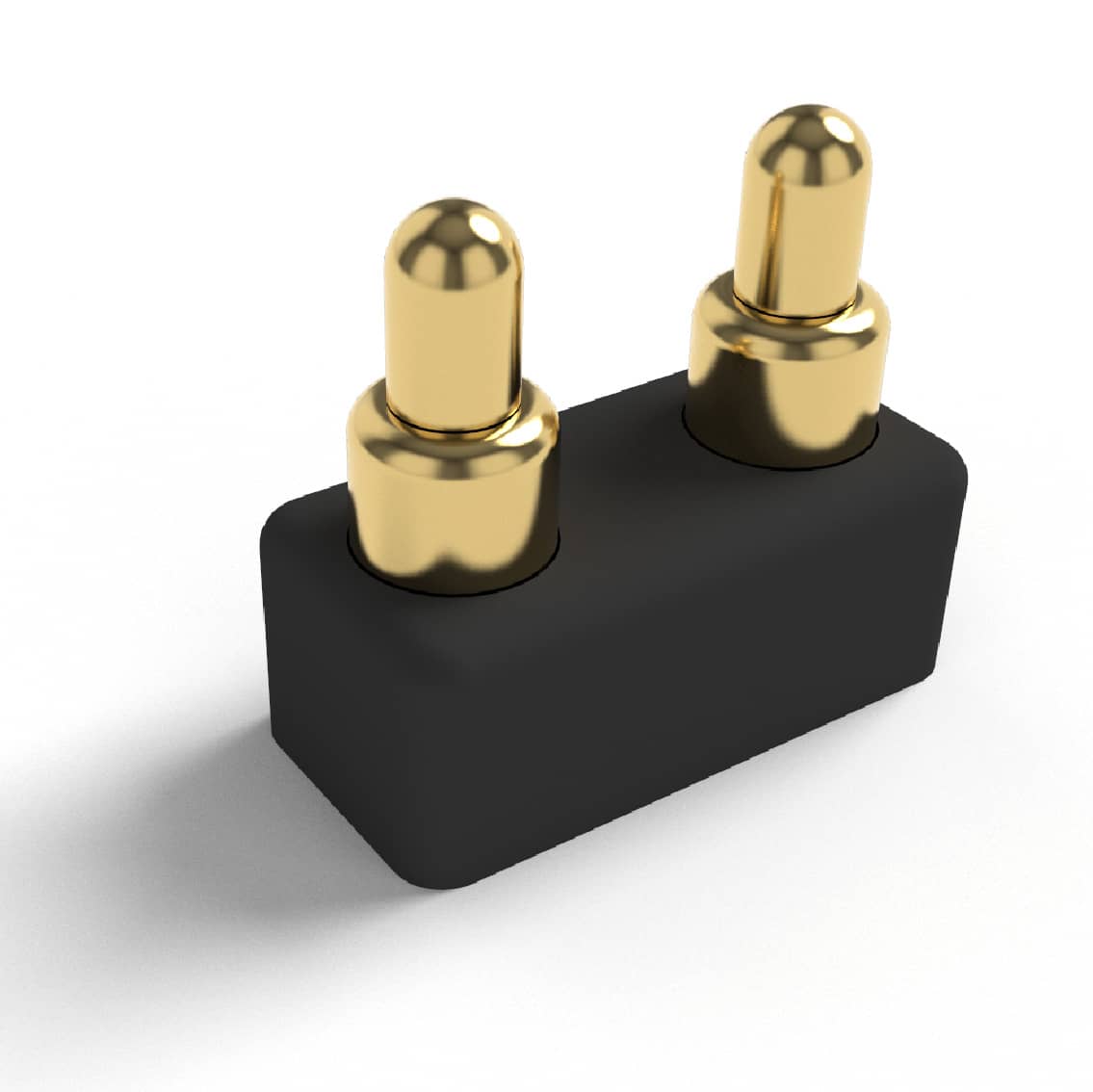

5 mm, 2 Pins, Non Standard Connectors, 4.3 mm Working Height, Pitch 3 mm, P3708MF01-02F300MR
5 mm, 2 Pins, Non Standard Connectors, 4.3 mm Working Height, Pitch 3 mm, P3708MF01-02F300MR
P3708MF01-02F300MR
Current1 A
Voltage12
Contact Resistance50 mΩ

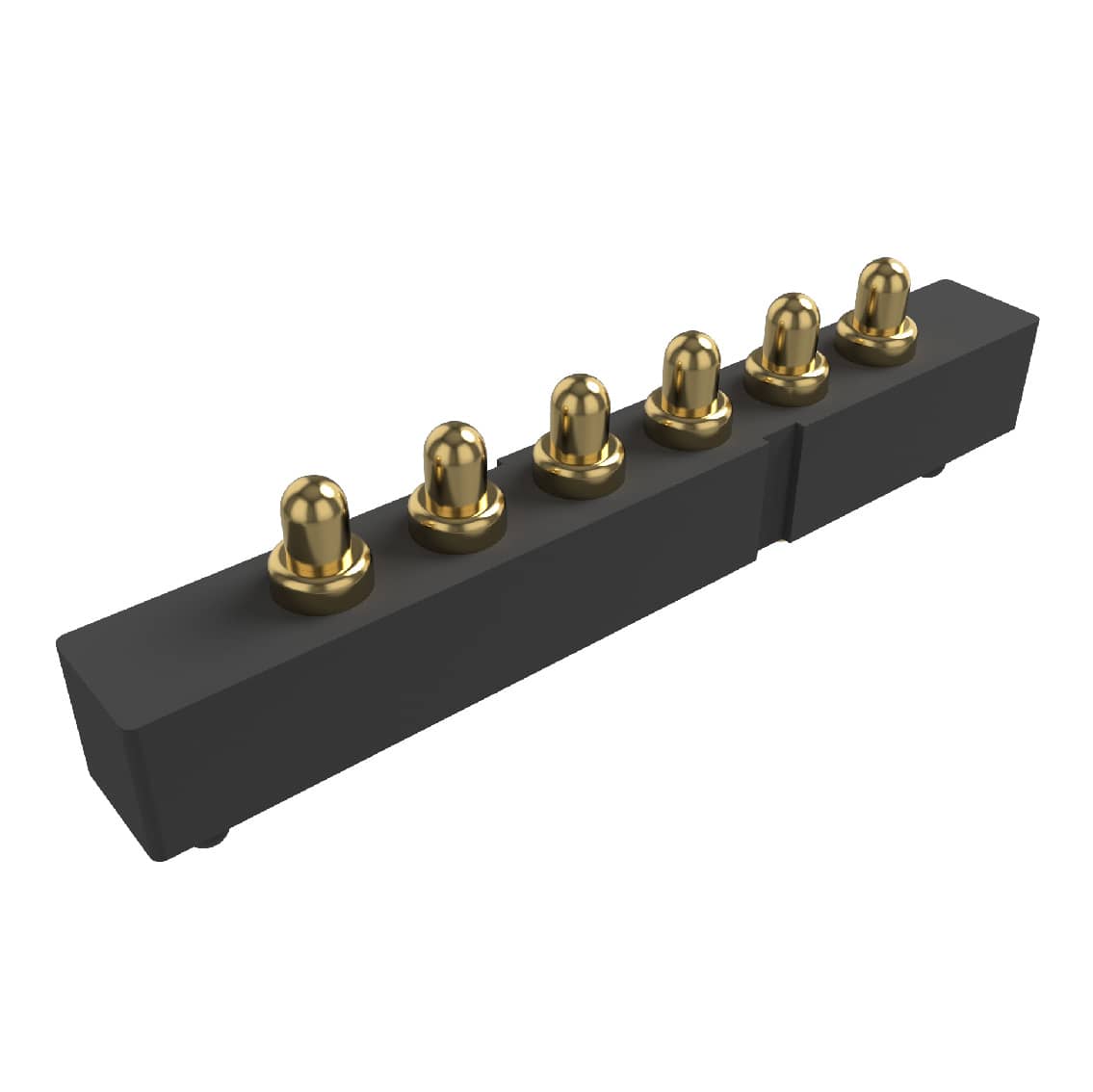

4.9 mm, 6 Pins, Non Standard Connectors, 4.1 mm Working Height, Pitch 2.54 mm, P3110MF02-06S254MR
4.9 mm, 6 Pins, Non Standard Connectors, 4.1 mm Working Height, Pitch 2.54 mm, P3110MF02-06S254MR
P3110MF02-06S254MR
Current1 A
Voltage12
Contact Resistance50 mΩ

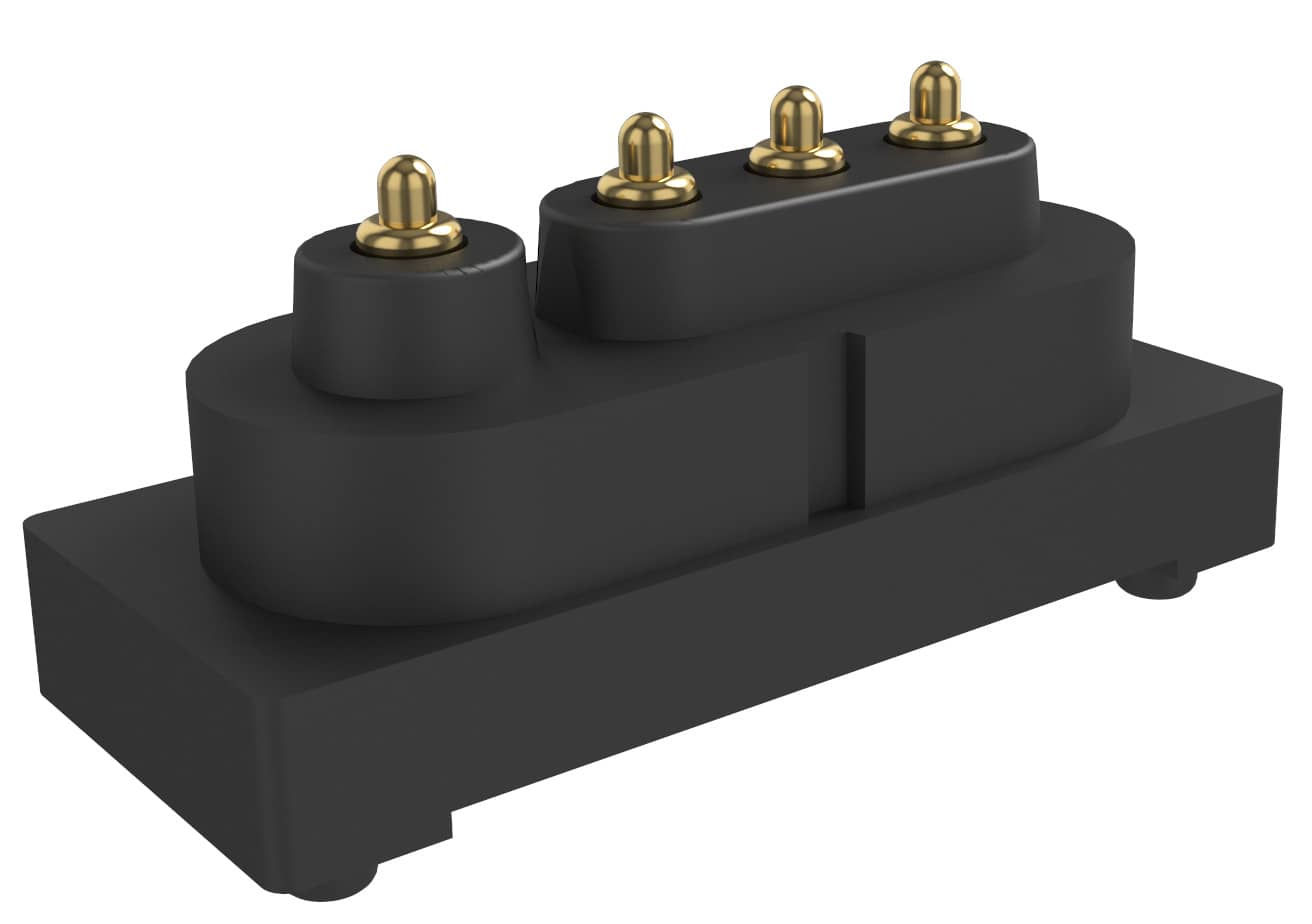

6.13 mm, 4 Pins, Waterproof Connectors, 5.7 mm Working Height, Pitch 2.1 mm, P3613MP05-04A210MR
