Female Gold Pin, Landing Pad 1.35 mm , HCS00146FM1-B
Главная › Гнездовые разъемы › Точеный одноконтактный разъем › HCS00146FM1-B
Гнездовые разъемы
HCS00146FM1-B
Гнездовые разъемы
Part No.:HCS00146FM1-B
Length
3.25mm
Tube OD
1.70mm
Rated Current
3
Resistance
50 mΩmΩ
Download 2D Drawing Request Quote
Product Specifications
Length3.25 mm
Pin OrientationVertical
Tail TypeFlat
Rated Current3 A
Contact Resistance50 mΩ
Lead Time21 days
Barrel Base MaterialSUS 316F
Barrel PlatingAu
Rated Voltage12 V
Max OD1.70 mm
Related Products

Related Probes

2.7 mm, 8 Pins, Non Standard Connectors, 1.5 mm Landing Pad, Pitch 2.3 mm, P3395FS02-08C230HT
2.7 mm, 8 Pins, Non Standard Connectors, 1.5 mm Landing Pad, Pitch 2.3 mm, P3395FS02-08C230HT
P3395FS02-08C230HT
Length2.70 mm
2.35 mm, 2 Pins, Waterproof Connectors, Landing Pad 1.3 mm, Pitch 5 mm, HCS1311FM01-R
2.35 mm, 2 Pins, Waterproof Connectors, Landing Pad 1.3 mm, Pitch 5 mm, HCS1311FM01-R
HCS1311FM01-R
Current2 A
ProtectionIPX8
Contact Resistance50 mΩ

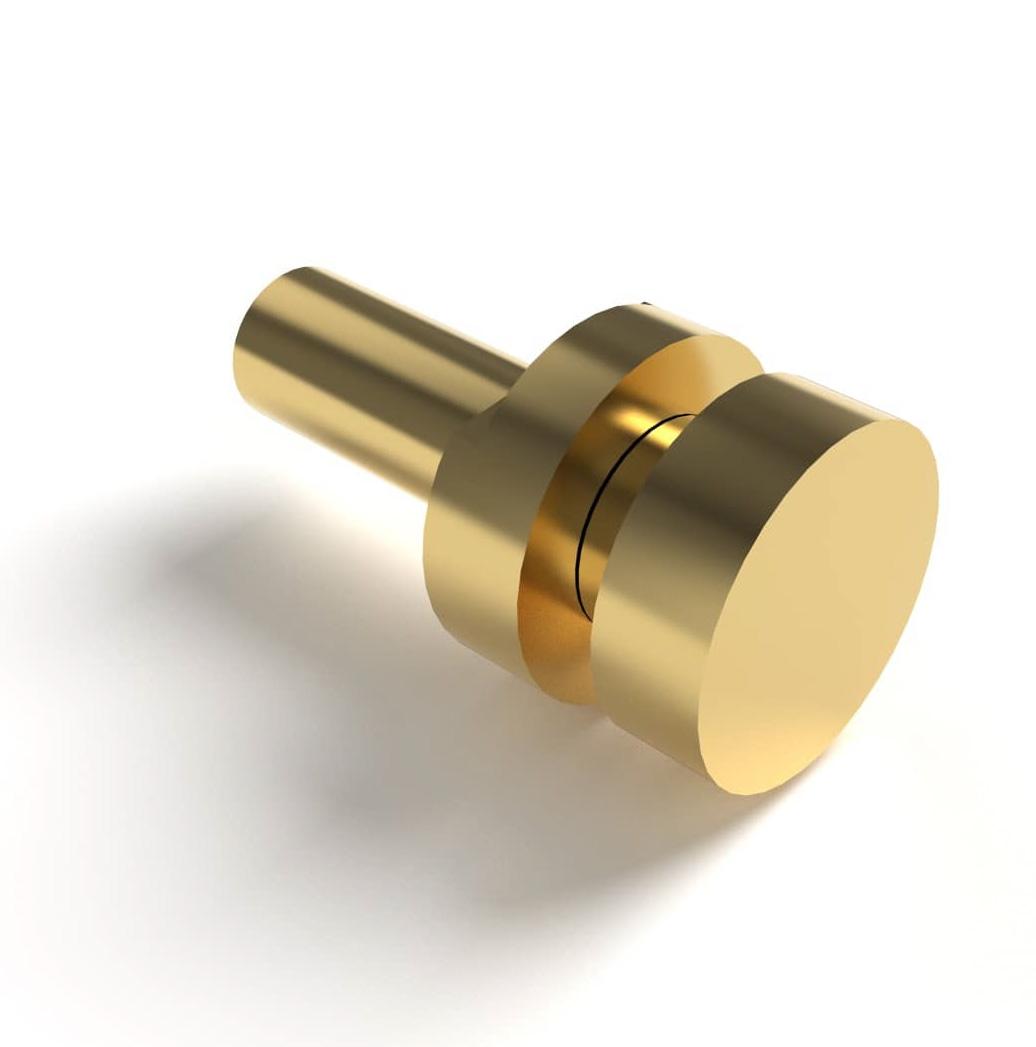

Single Female Pin, Landing Pad 2.3mm, HCS1525SM02-B
