POGO PIN 커넥터
3.2 mm, 1 Pin, 2.7 mm Working Height, P2616FH03
홈 › Pogo Pin 커넥터 › 싱글핀 스프링 핀 › P2616FH03
Pogo Pin 커넥터
P2616FH03
Pogo Pin 커넥터
Part No.:P2616FH03
Length
3.20mm
Rated Current
1.5
Resistance
50mΩ
Download 2D Drawing Download 3D CAD Request Quote
Product Specifications
Length3.20 mm
Working Height2.70 mm
Pin OrientationVertical
Number of Pins1
Pitch0.00 mm
Rated Current1.5 A
Contact Resistance50 mΩ
Lead Time28 days
Plunger Base MaterialBrass
Plunger PlatingCuSnZn/Au
Barrel Base MaterialBrass
Barrel PlatingCuSnZn/Au
Spring Base MaterialSWP
Housingn/a
Rated Voltage12 V
Spring Force80 g ± 20%
Life Cycles10000 cycles
Related Products

Related Probes

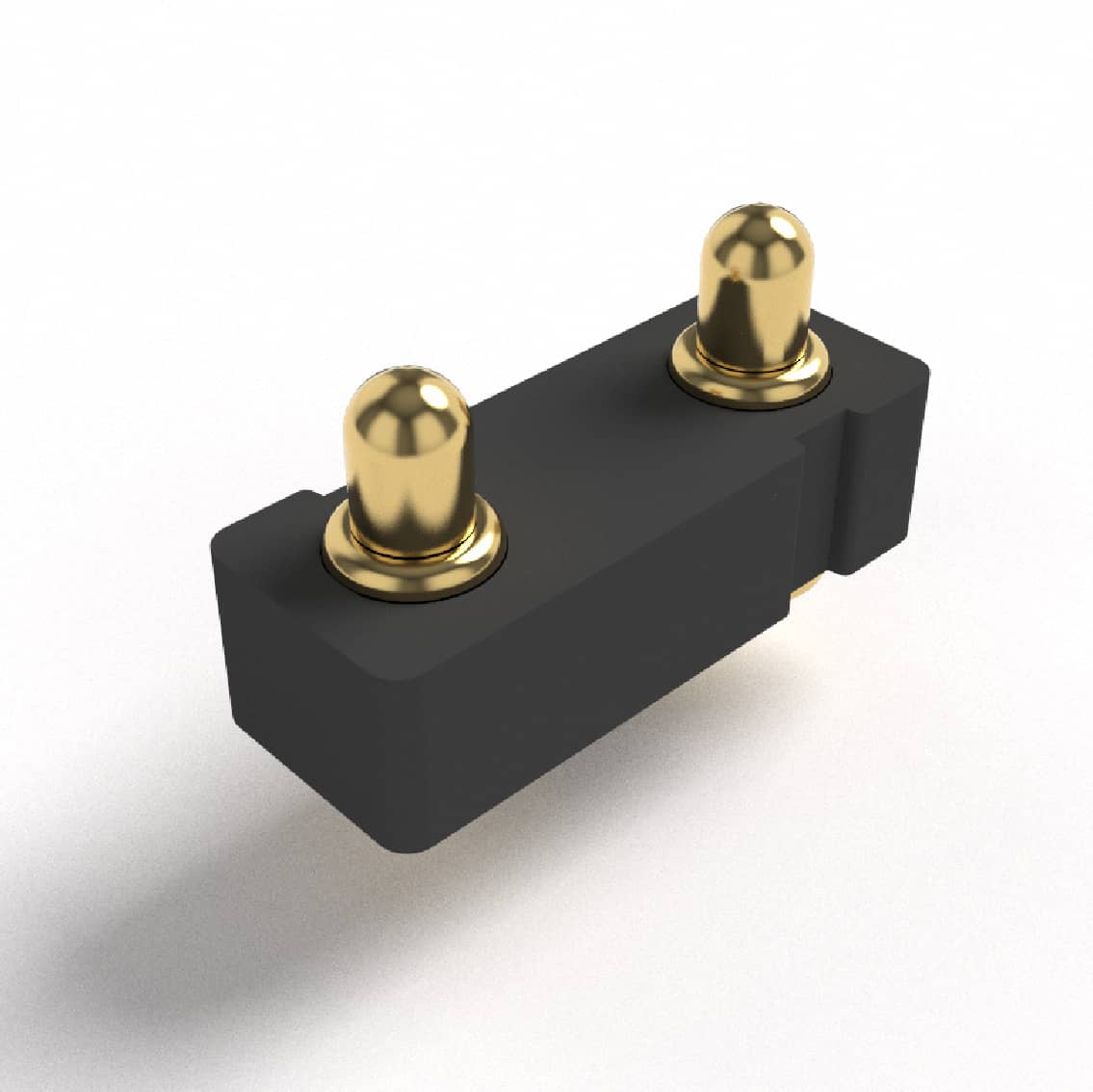

3.8 mm, 2 Pins, Non Standard Connectors, 3.1 mm Working Height, Pitch 4 mm, F1106AA01-02A400MR
3.8 mm, 2 Pins, Non Standard Connectors, 3.1 mm Working Height, Pitch 4 mm, F1106AA01-02A400MR
F1106AA01-02A400MR
Current1 A
Voltage12
Contact Resistance100 mΩ

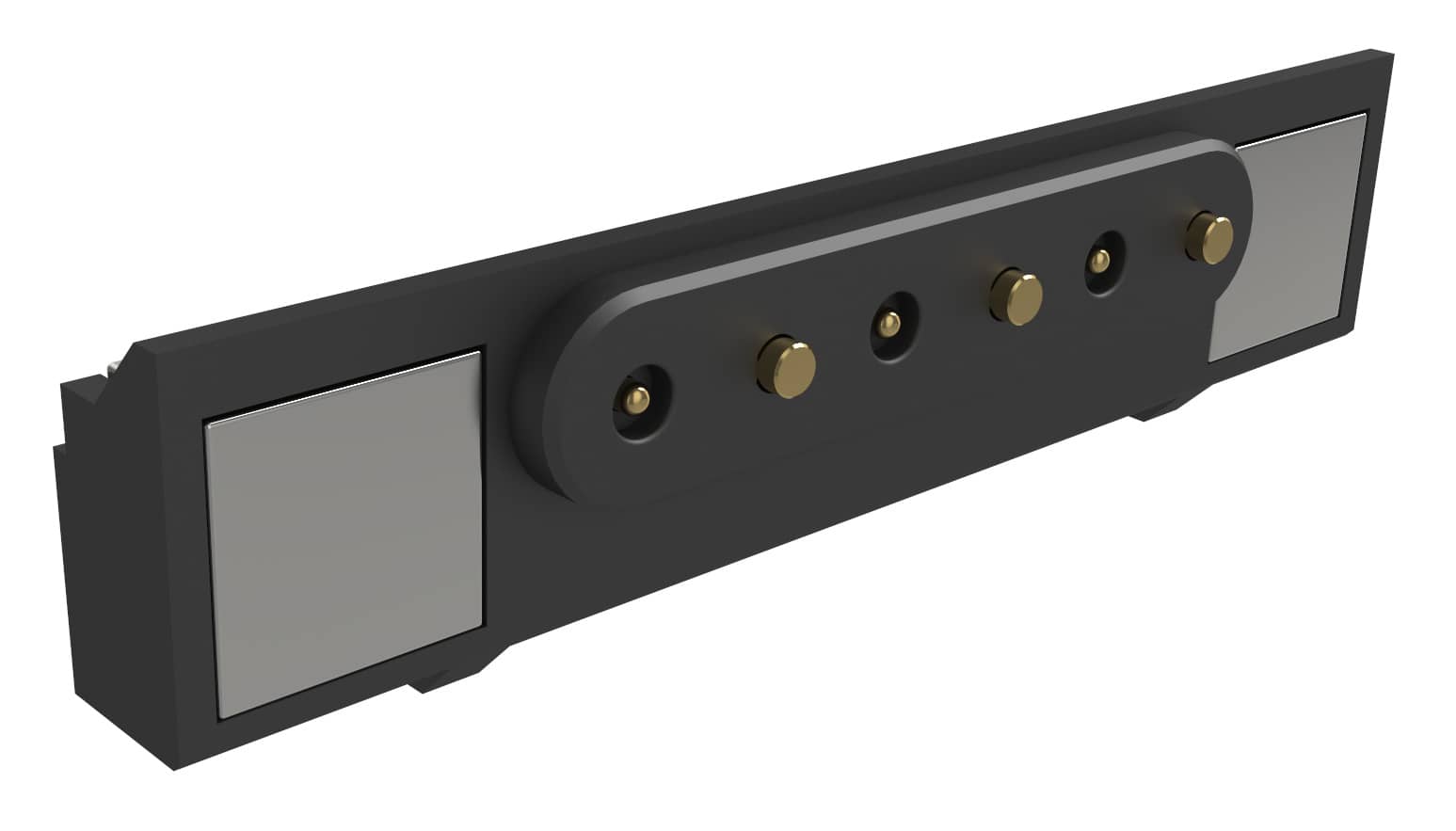

7 mm, 6 Pins, Magnetic Connectors, 0.5 mm Working Height, Pitch 3 mm, P5555FS01-06A300HS
7 mm, 6 Pins, Magnetic Connectors, 0.5 mm Working Height, Pitch 3 mm, P5555FS01-06A300HS
P5555FS01-06A300HS
Current1 A
Voltage12
Contact Resistance100 mΩ

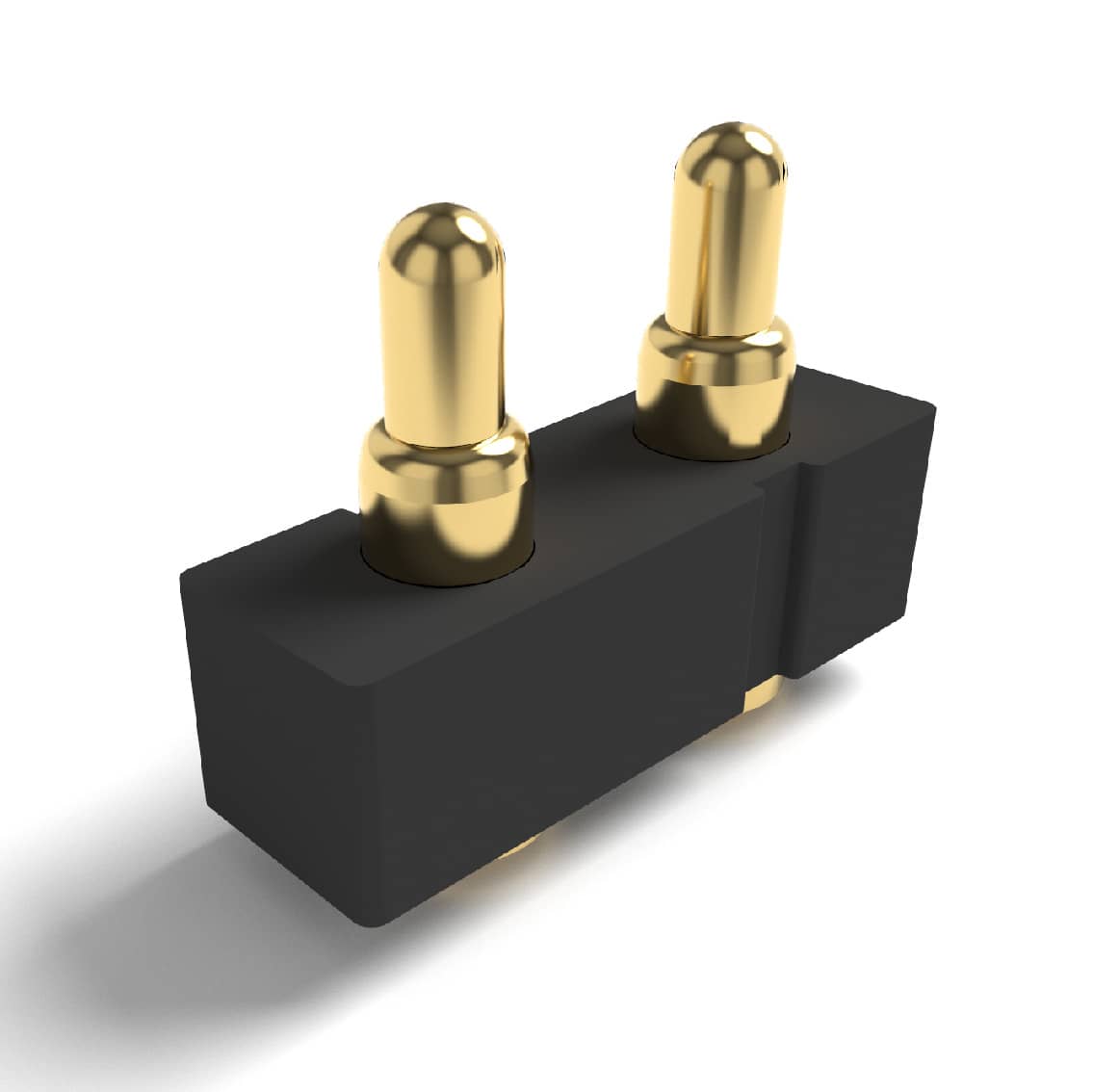

5.8 mm, 2 Pins, Non Standard Connectors, 4.8 mm Working Height, Pitch 3.5 mm, N005M4-02C350MR
