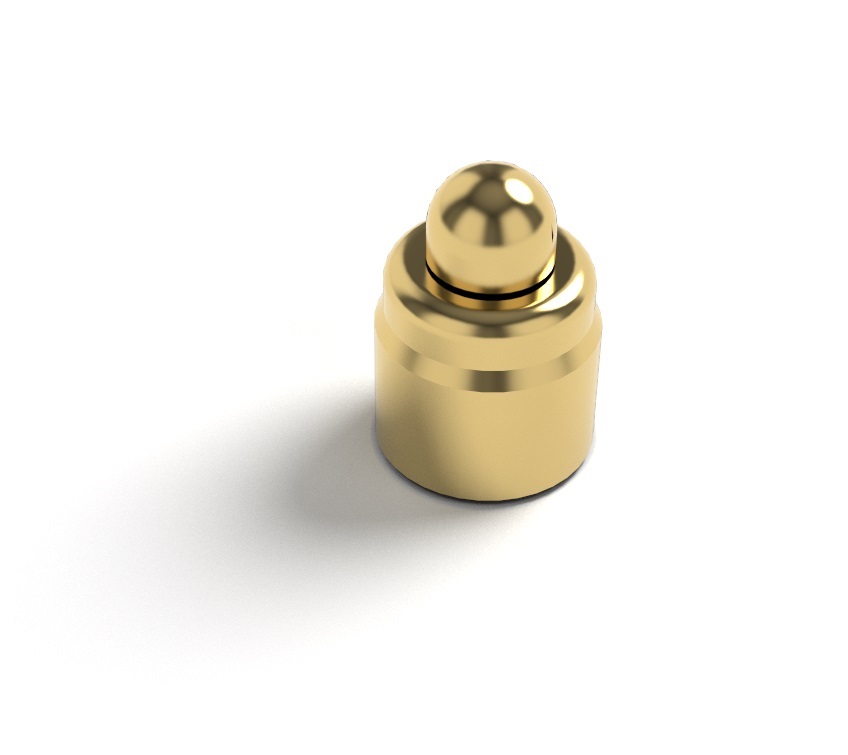

1.25 mm, Ultra Small Pogo Pin, 1 mm Working Height, P6925FP03

1.25 mm, Ultra Small Pogo Pin, 1 mm Working Height, P6925FP03
Previous Pause Next
  • 0
  • 1
Category
Ultra Small Pins
Part Number P6925FP03
Length 1.25
Working Height 1.00
Pin Direction Vertical
Pin Amount 1
Pitch 0.00
Rated Current 300m
Contact Resistance 100 mΩ
Datasheet P6925FP03 A.0.pdf
3D CAD P6925FP03.STEP
Get a Quotation
Lead Time 28

Product Specifications

Plunger Base Brass
Plunger Plating Nickle/Au
Barrel Base Brass
Barrel Plating Nickle/Au
Spring Base SUS(Au Plating)
Housing n/a
Rated Current 300m A
Rated Voltage 12 V
Contact Resistance 100 mΩ
Spring Force 35 g ± 20%
Life Cycle 600

Description

This super small pogo pin has a working height of just 1mm and can be used for very small design applications. The pin can also be purchased with cap for SMT. Typical applications are smartphones, hearing aids, tablets, true-wireless earbuds and medical products that need very small dimensions.
