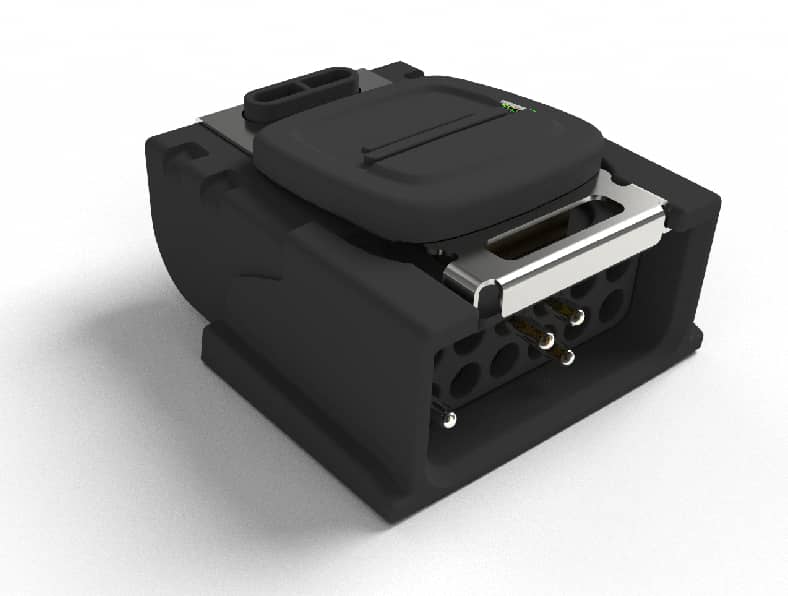

2.2 mm, 4 Pins, Waterproof Connectors, 1.7 mm Working Height, Pitch 2 mm
2.2 mm, 4 Pins, Waterproof Connectors, 1.7 mm Working Height, Pitch 2 mm
| Category |
Waterproof Connectors
|
| Part Number | F047AA00-04200ST |
| Length | 2.20 |
| Working Height | 1.70 |
| Pin Direction | Vertical |
| Pin Amount | 4 |
| Pitch | 2.00 |
| Rated Current | 1 |
| Contact Resistance | 100 mΩ |
| Datasheet | F047AA00-04200ST-Model.pdf |
| 3D CAD | F047AA00-04200ST.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Nickle/Au |
| Barrel Base | Brass |
| Barrel Plating | Nickle/Au |
| Housing | Black PA46 |
| Rated Current | 1 A |
| Rated Voltage | 12 V |
| Contact Resistance | 100 mΩ |
| Spring Force | 80 g ± 20% |
| Life Cycle | 100000 |
