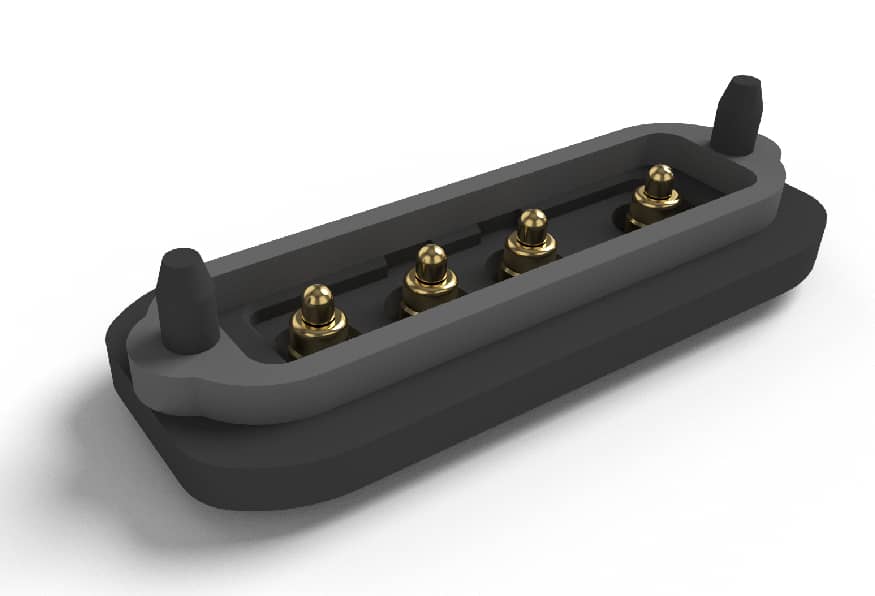

2.65 mm, 4 Pins, Waterproof Connectors, 2.15 mm Working Height, Pitch 2.1 mm
2.65 mm, 4 Pins, Waterproof Connectors, 2.15 mm Working Height, Pitch 2.1 mm
| Category |
Waterproof Connectors
|
| Part Number | P5320MF01-04A210HT |
| Length | 2.65 |
| Working Height | 2.15 |
| Pin Direction | Vertical |
| Pin Amount | 4 |
| Pitch | 2.10 |
| IP Factor | IPX7 |
| Rated Current | 1.5 |
| Contact Resistance | 350 mΩ |
| Datasheet | P5320MF01-04A210HT-Model.pdf |
| 3D CAD | P5320MF01-04A210HT.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Nickle/Au |
| Barrel Base | Brass |
| Barrel Plating | Nickle/Au |
| Spring Base | SUS304 |
| Housing | PPS |
| Rated Current | 1.5 A |
| Rated Voltage | 12 V |
| Contact Resistance | 350 mΩ |
| Spring Force | 80 g ± 20% |
| Life Cycle | 10000 |
