C.C.P. Contact Probes Co., LTD.

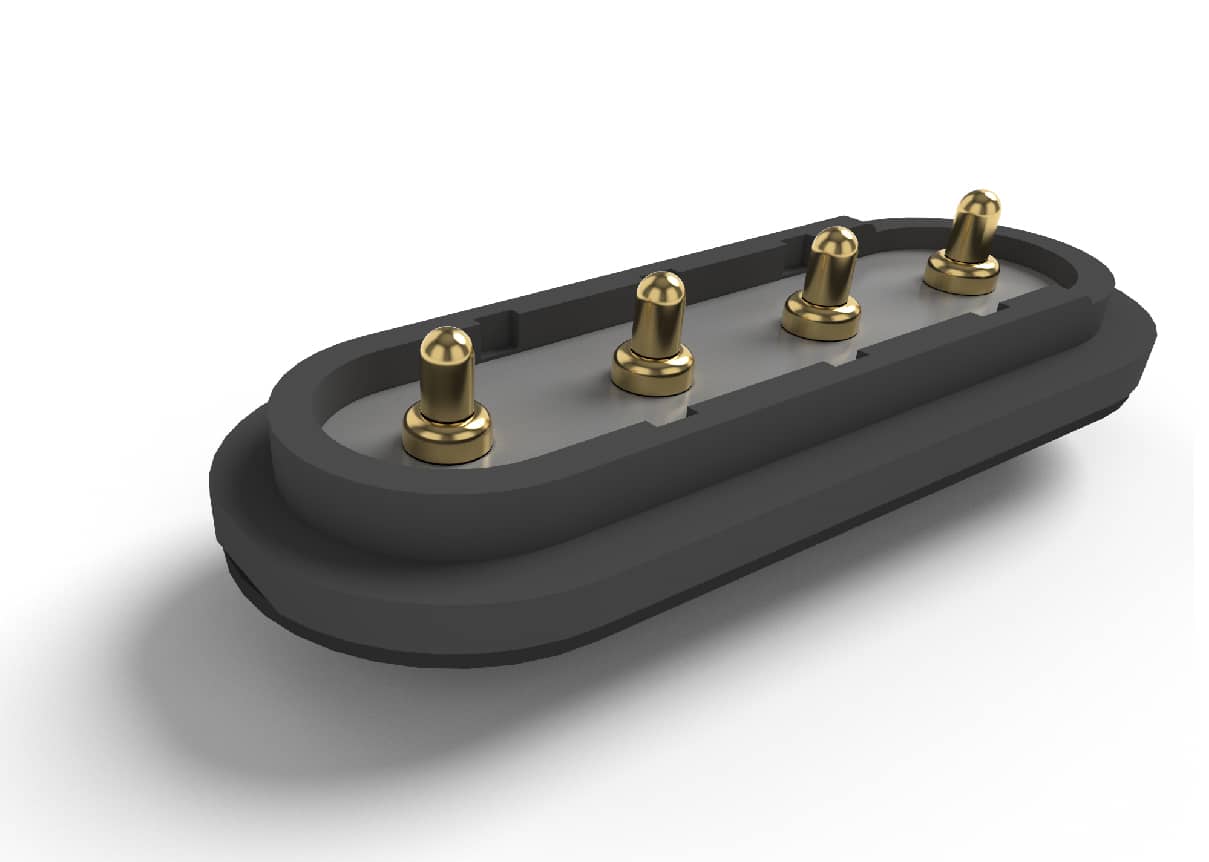

3.15 mm, 4 Pins, Waterproof Connectors, 2.55 mm Working Height, Pitch 2.54 mm
3.15 mm, 4 Pins, Waterproof Connectors, 2.55 mm Working Height, Pitch 2.54 mm
| Category |
Waterproof Connectors
|
| Part Number | P5875MF01-04A250HT |
| Length | 3.15 |
| Working Height | 2.55 |
| Pin Direction | Vertical |
| Pin Amount | 4 |
| Pitch | 2.54 |
| IP Factor | IPX7 |
| Rated Current | 1 |
| Contact Resistance | 50 mΩ |
| Datasheet | P5875MF01-04A250HT-Model.pdf |
| 3D CAD | P5875MF01-04A250HT.stp |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Nickle/Au |
| Barrel Base | Brass |
| Barrel Plating | Nickle/Au |
| Spring Base | 75 |
| Housing | HTN |
| Rated Current | 1 A |
| Rated Voltage | 12 V |
| Contact Resistance | 50 mΩ |
| Spring Force | 75 g ± 20% |
| Life Cycle | 10000 |
Description
P5875MF01-04A250HT
