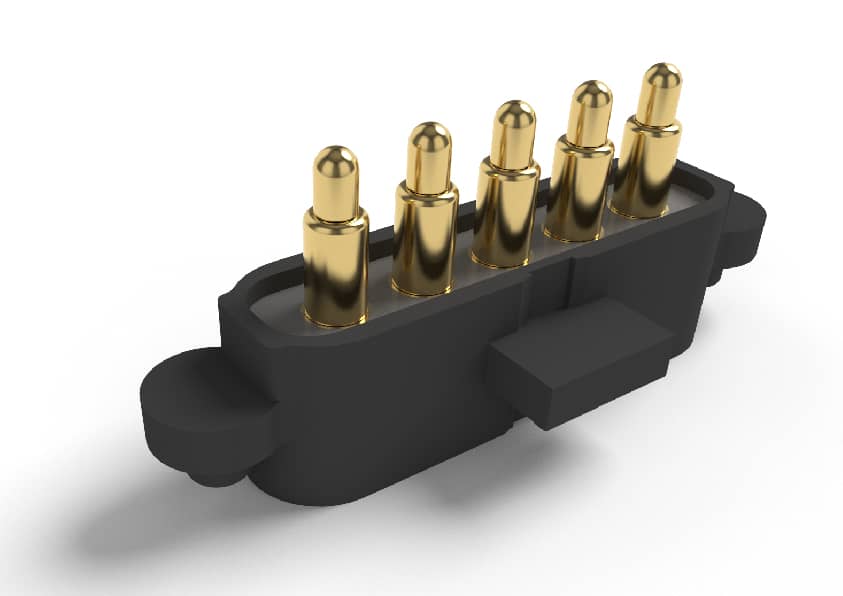

9.05 mm, 5 Pins, Waterproof Connectors, 8.1 mm Working Height, Pitch 2.5 mm
9.05 mm, 5 Pins, Waterproof Connectors, 8.1 mm Working Height, Pitch 2.5 mm
| Category |
Waterproof Connectors
|
| Part Number | P3608MP01-05A250MR |
| Length | 9.05 |
| Working Height | 8.10 |
| Pin Direction | Vertical |
| Pin Amount | 5 |
| Pitch | 2.50 |
| IP Factor | IPX7 |
| Rated Current | 2 |
| Contact Resistance | 50 mΩ |
| Datasheet | P3608MP01-05A250MR-Model.pdf |
| 3D CAD | P3608MP01-05A250MR.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Nickle/Au |
| Barrel Base | Brass |
| Barrel Plating | CuSnZn/Au |
| Spring Base | SUS |
| Housing | Black PC |
| Rated Current | 2 A |
| Rated Voltage | 12 V |
| Contact Resistance | 50 mΩ |
| Spring Force | 90 g ± 20% |
| Life Cycle | 10000 |
