9.6 mm, 2 Pins, Magnetic Connectors, mm Working Height, Pitch 16.4 mm

9.6 mm, 2 Pins, Magnetic Connectors, mm Working Height, Pitch 16.4 mm
Category
Magnetic Connectors

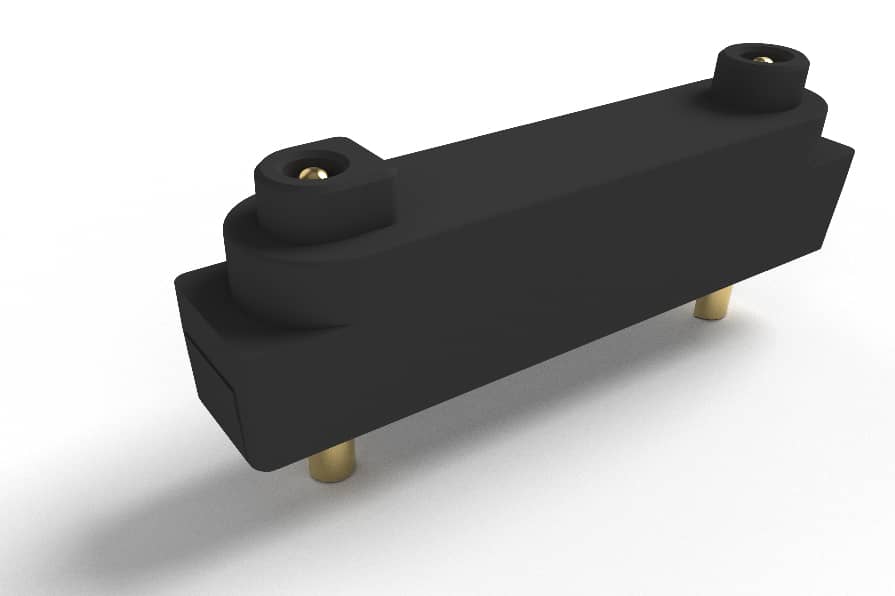

Part Number P2859MS01-02B164HT
Length 9.60
Pin Direction Vertical
Pin Amount 2
Pitch 16.40
Rated Current 5
Contact Resistance 50 mΩ
Get a Quotation
Lead Time 28

Product Specifications

Plunger Base Brass
Plunger Plating CuSnZn/Au
Barrel Base Brass
Barrel Plating CuSnZn/Au
Spring Base SUS
Housing HTN
Rated Current 5 A
Rated Voltage 24 V
Contact Resistance 50 mΩ
Spring Force 110 g ± 20%
Life Cycle 20000

Description

P2859MS01-02B164HT
