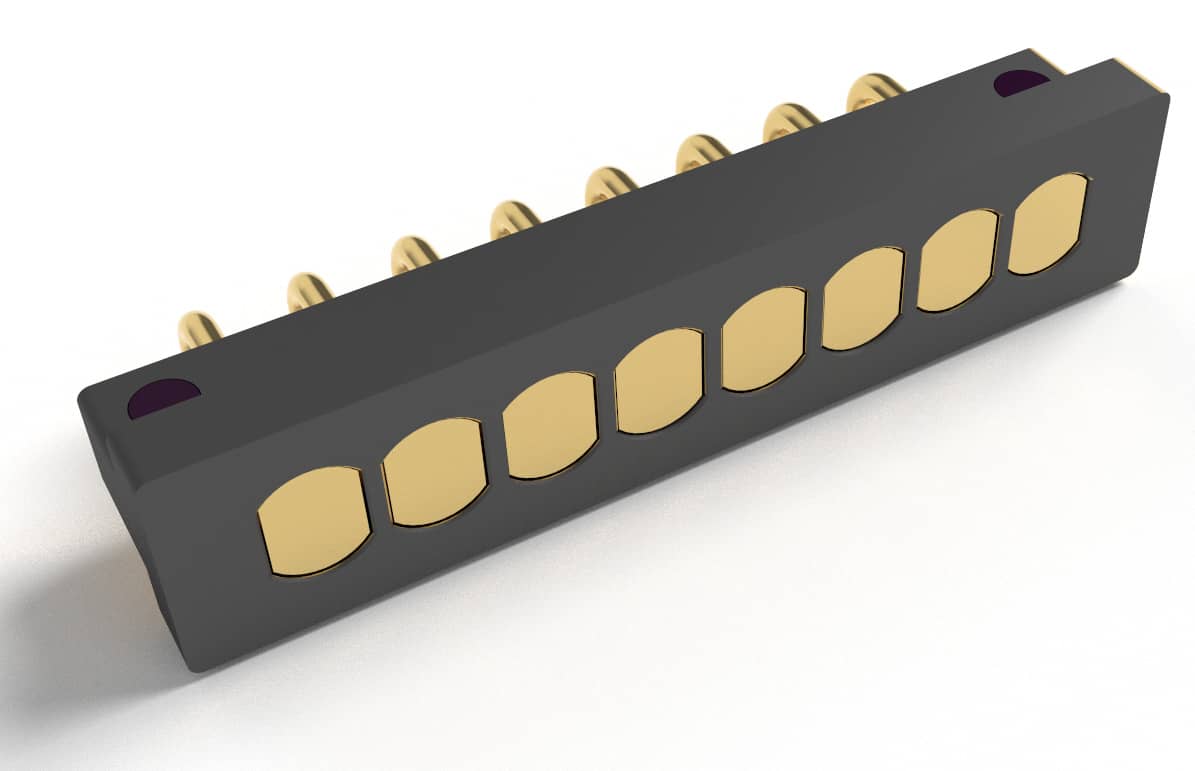

7.1 mm, 8 Pins, Non Standard Connectors, 1 mm Landing Pad, Pitch 2.4 mm
7.1 mm, 8 Pins, Non Standard Connectors, 1 mm Landing Pad, Pitch 2.4 mm
| Category | |
| Part Number | P2382FT01-08B240HT |
| Length | 7.10 |
| Pin Direction | Right Angle |
| Pin Tail | Soldering Cup |
| Pin Amount | 8.00 |
| Pitch | 2.40 |
| Rated Current | 2 |
| Contact Resistance | 50 mΩ |
| Datasheet | P2382FT01-08B240HT-Model.pdf |
| 3D CAD | P2382FT01-08B240HT.stp |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Nickel/Au |
| Barrel Base | Brass |
| Barrel Plating | Nickel/Au |
| Housing | HTN |
| Rated Current | 2 A |
| Rated Voltage | 12 V |
| Contact Resistance | 50 mΩ |
