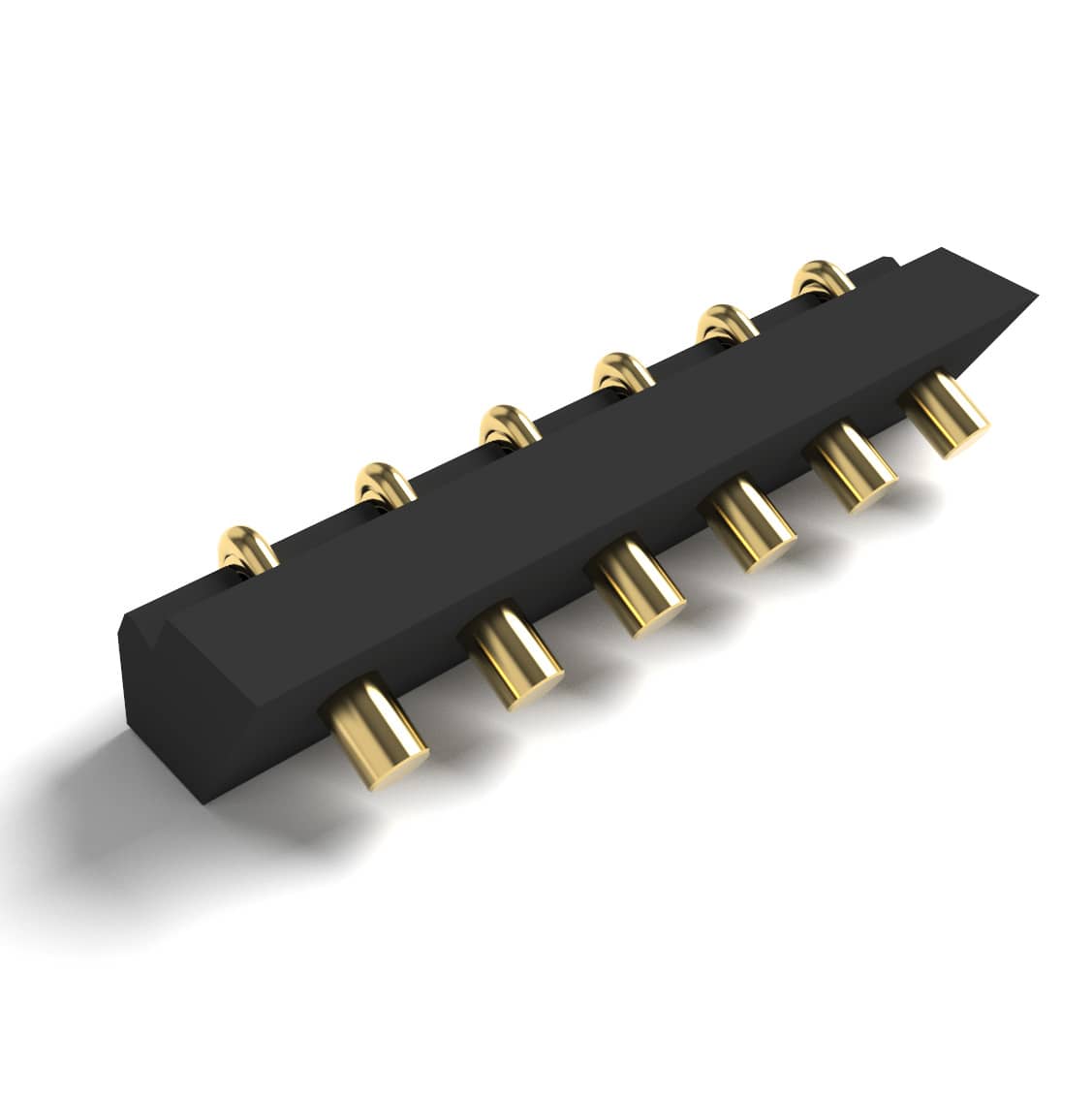

4.49 mm, 6 Pins, Non Standard Connectors, Landing Pad 1.3 mm, Pitch 3.2 mm
4.49 mm, 6 Pins, Non Standard Connectors, Landing Pad 1.3 mm, Pitch 3.2 mm
| Category | |
| Part Number | P2509FT01-06A320HR |
| Length | 4.49 |
| Pin Direction | Right Angle |
| Pin Tail | Flat |
| Pin Amount | 6.00 |
| Pitch | 3.20 |
| Rated Current | 2 |
| Contact Resistance | 50 mΩ |
| Datasheet | P2509FT01-06A320HR-Model.pdf |
| 3D CAD | P2509FT01-06A320HR.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Nickel/Au |
| Barrel Base | Brass |
| Barrel Plating | Nickel/Au |
| Housing | LCP |
| Rated Current | 2 A |
| Rated Voltage | 12 V |
| Contact Resistance | 50 mΩ |
Description
P2509FT01-06A320HR
