Female Gold Pin, Landing Pad 1.3mm Diameter, HCS00023FM2

Female Gold Pin, Landing Pad 1.3mm Diameter, HCS00023FM2

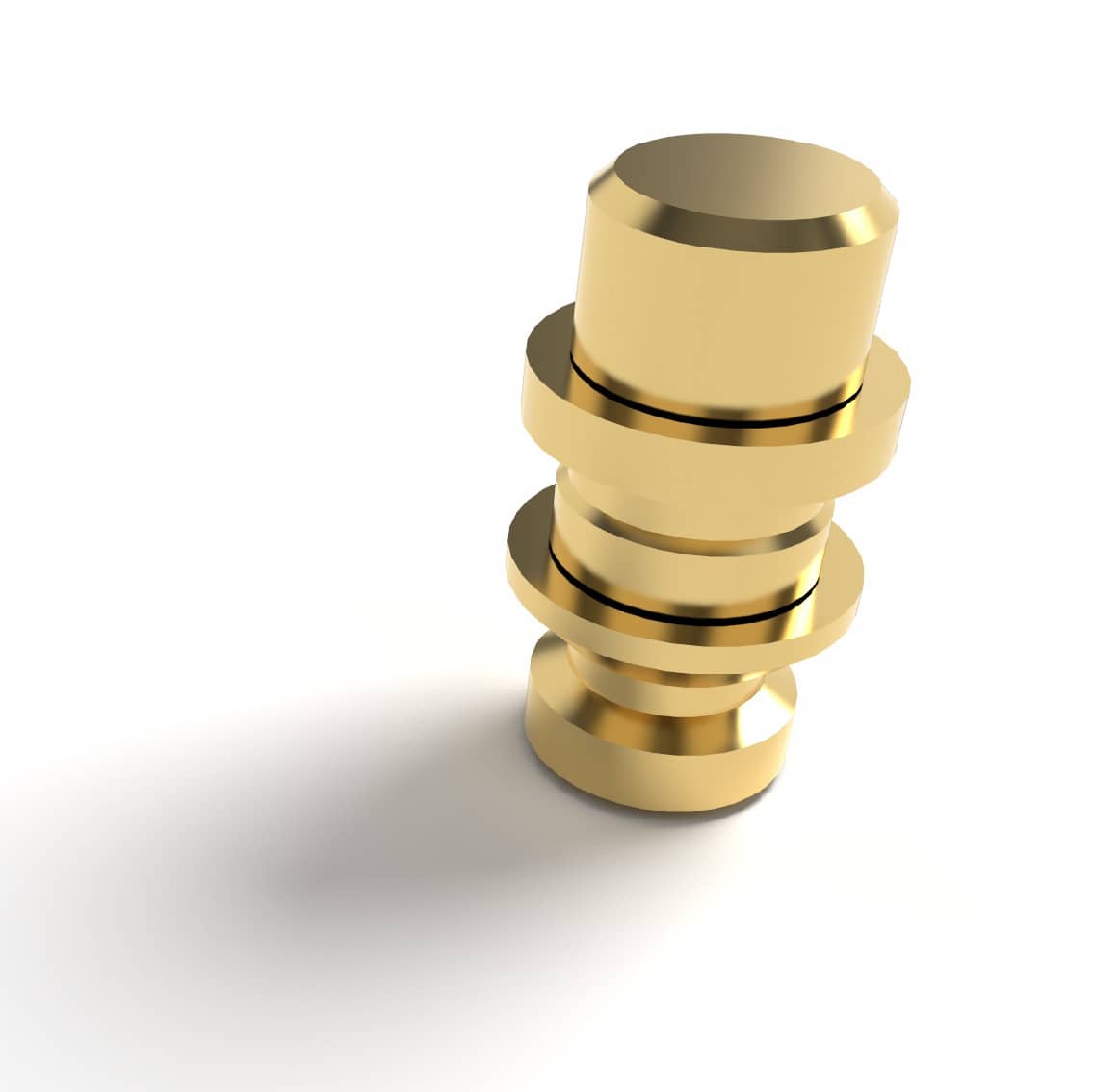

HCS00023FM2-B Female Landing Pad Gold Plated
HCS00023FM2-B Female Landing Pad Gold Plated
Previous Pause Next
  • 0
  • 1
Category
Single Female Pins
Part Number HCS00023FM2-B
Length 2.95
Pin Direction Vertical
Pin Tail Flat
Rated Current 3 Amps
Max Outer Diameter (mm) 1.90
Contact Resistance 50 mOhm mΩ
Datasheet HCS00023FM2-B.pdf
Get a Quotation
Lead Time 21

Product Specifications

Barrel Base SUS
Barrel Plating Au
Rated Current 3 Amps A
Rated Voltage 12 V
Contact Resistance 50 mOhm mΩ

Description

Female machining pin. Can be used as a landing pad. Suitable for insert molding, gluing and soldering.
