Female Machining Pin with Gold Landing Pad
Female Machining Pin with Gold Landing Pad

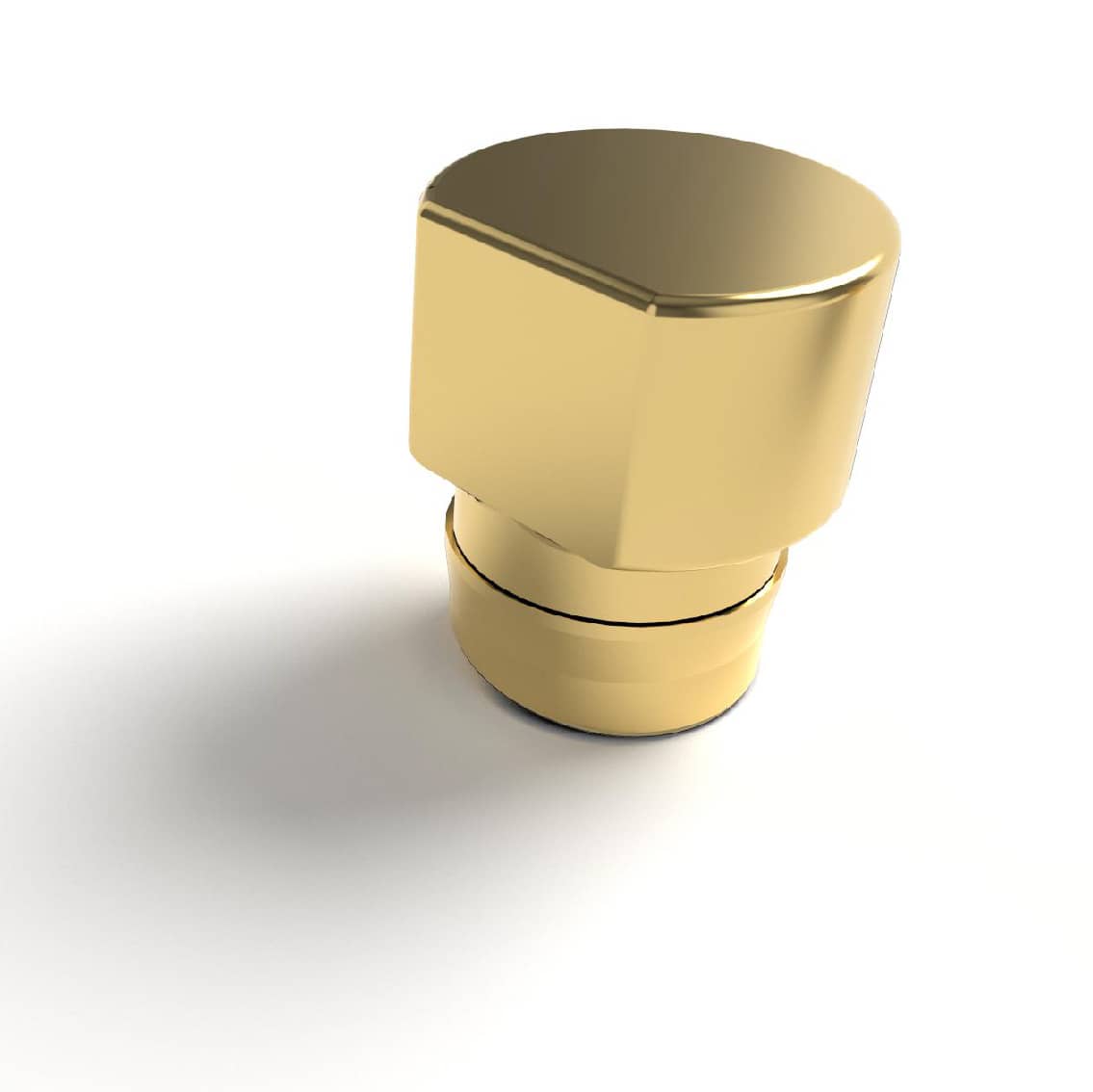

Female Machining Pin with Gold Landing Pad 3d Render
Previous Pause Next
  • 0
  • 1
  • 2
Category
Single Female Pins
Part Number HCS00044SM4-B
Length 1.50
Pin Direction Vertical
Pin Tail Tail
Rated Current 3 Amps
Max Outer Diameter (mm) 1.30
Contact Resistance 50 mΩ
Datasheet HCS00044SM4-B A.0.pdf
Get a Quotation
Lead Time 21

Product Specifications

Barrel Base HBi59-1.5
Barrel Plating APII
Rated Current 3 Amps A
Rated Voltage 12 V
Contact Resistance 50 mΩ
