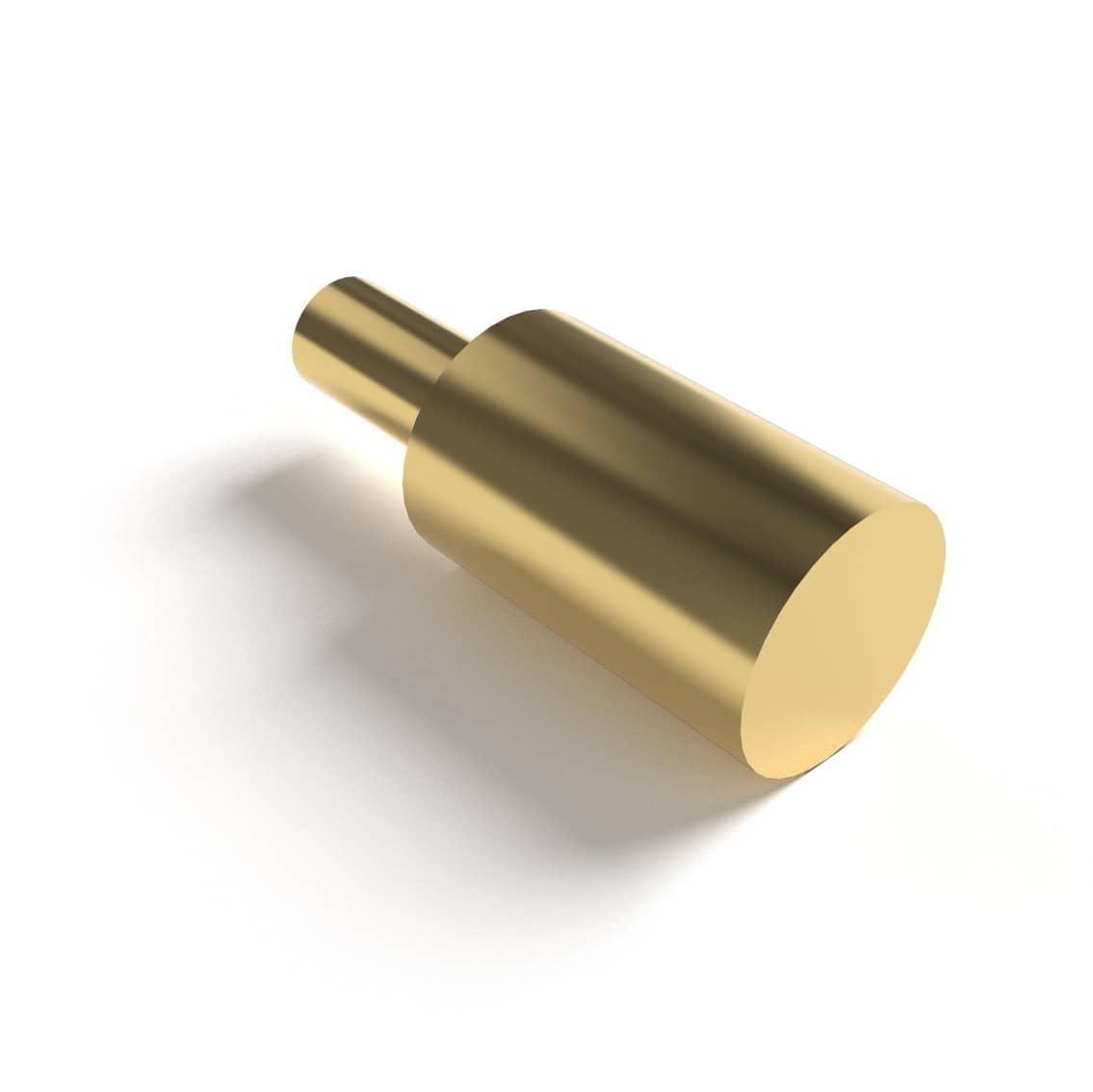

Female Gold Pin, Landing Pad 3 mm squared, HCS061M0-B
Female Gold Pin, Landing Pad 3 mm squared, HCS061M0-B
| Category | |
| Part Number | HCS061M0-B |
| Length | 7.80 |
| Pin Direction | Vertical |
| Pin Tail | Tail |
| Rated Current | 3 Amps |
| Max Outer Diameter (mm) | 3.00 |
| Contact Resistance | 50 mOhm mΩ |
| Datasheet | HCS061M0-B A.0.pdf |
Get a Quotation
| Lead Time | 21 |
Product Specifications
| Barrel Base | Brass |
| Barrel Plating | Au |
| Rated Current | 3 Amps A |
| Rated Voltage | 12 V |
| Contact Resistance | 50 mOhm mΩ |
Description
Simple squared machining pin made of Brass with a 2 micro-inch Gold plating. Can be also mounted horizontally. The Tail is 3 mm long.
