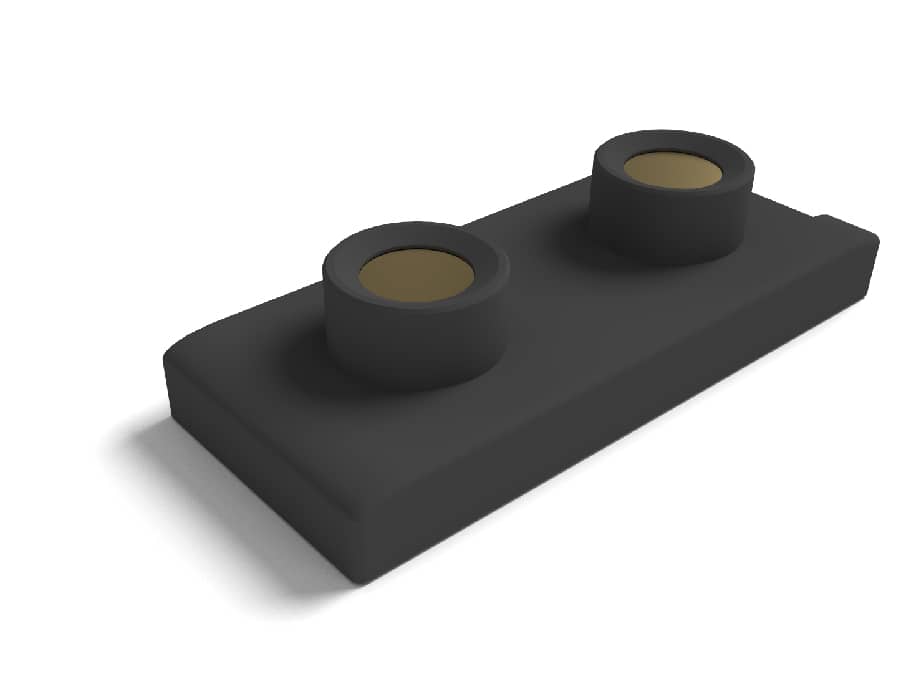

2.35 mm, 2 Pins, Waterproof Connectors, Landing Pad 1.3 mm, Pitch 5 mm
2.35 mm, 2 Pins, Waterproof Connectors, Landing Pad 1.3 mm, Pitch 5 mm
| Category | |
| Part Number | HCS1311FM01-R |
| Length | 2.35 |
| IP Factor | IPX8 |
| Pin Direction | Vertical |
| Pin Amount | 2.00 |
| Pitch | 5.00 |
| Rated Current | 2 |
| Max Outer Diameter (mm) | 1.50 |
| Contact Resistance | 50 mΩ |
| Datasheet | HCS1311FM01-R-Model.pdf |
| 3D CAD | HCS1311FM01-R.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | CuZnSn/Au |
| Barrel Base | Brass |
| Barrel Plating | CuZnSn/Au |
| Housing | PA9T |
| Rated Current | 2 A |
| Rated Voltage | DV 12 V |
| Contact Resistance | 50 mΩ |
| Life Cycle | 10000 |
Description
HCS1311FM01-R
