8 Different Pogo Pin Types [Design & Buy] - C.C.P. Contact Probes

Filters

Non Standard Connectors

6 Pin Pogo Pin Connector, 6.70mm Height, P1072ZZ01-06A300MR

Part Number

P1072ZZ01-06A300MR

Length

6.70 mm

Working Height

5.70 mm

Pin Amount

6.00 Pins

Pitch

2.54

Lead Time

28

Rated Current

2

6.1 mm, 4 Pins, Non Standard Connectors, 5.1 mm Working Height, Pitch 2.5 mm

Part Number

R175AA00-04250R

Length

6.10 mm

Working Height

5.10 mm

Pin Amount

4.00 Pins

Pitch

2.50

Lead Time

28

Rated Current

1

2.01 mm, 5 Pins, Pitch 2.8 mm

Part Number

P3259FS02-05A280HR

Length

2.01 mm

Pin Amount

5.00 Pins

Pitch

2.80

Lead Time

28

Rated Current

1.2

8.7 mm, 5 Pins, 7 mm Working Height, Pitch 2 mm

Part Number

P6287MF02-05A200MR

Length

8.70 mm

Working Height

7.00 mm

Pin Amount

5.00 Pins

Pitch

2.00

Lead Time

28

Rated Current

3~5

7.7/7.5 mm, 13 Pins, Non Standard Connectors, 6.6 mm Working Height, Pitch 1.05 mm

Part Number

P1179AA17-13B210HR

Working Height

6.60 mm

Pin Amount

13.00 Pins

Pitch

1.05

Lead Time

28

Rated Current

2

11.1 mm, 8 Pins, Non Standard Connectors, 9.6 mm Working Height, Pitch 17.78 mm

Part Number

P1933AA01-08C254HT

Length

11.10 mm

Working Height

9.60 mm

Pin Amount

8.00 Pins

Pitch

17.78

Lead Time

28

Rated Current

2

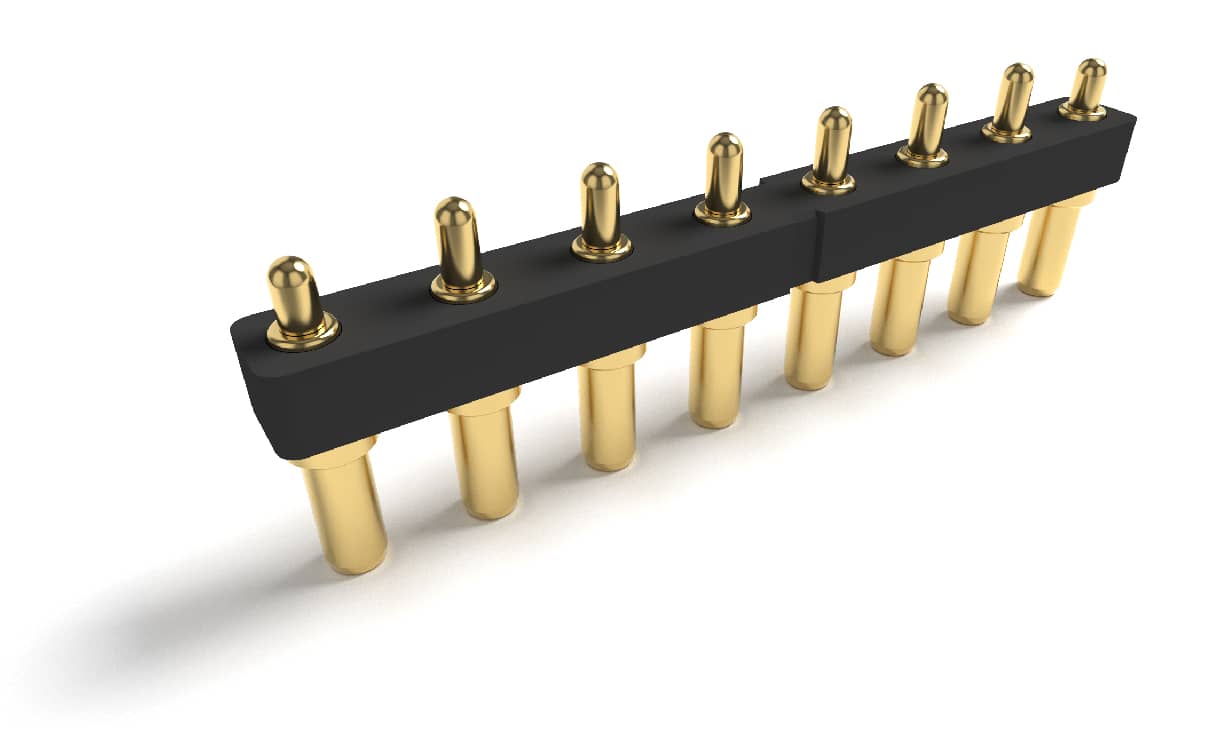

8.3/7.9 mm, 8 Pins, Non Standard Connectors, 6.9 mm Working Height, Pitch 3.5 mm

Part Number

P2613MP01-08E350MR

Working Height

6.90 mm

Pin Amount

8.00 Pins

Pitch

3.50

Lead Time

28

Rated Current

2

7.5/8.2 mm, 18 Pins, Non Standard Connectors, 6.6 mm Working Height, Pitch 2.5 mm

Part Number

P3673MF01-18A250MR

Working Height

6.60 mm

Pin Amount

18.00 Pins

Pitch

2.50

Lead Time

28

Rated Current

1

5 mm, 8 Pins, Non Standard Connectors, 4 mm Working Height, Pitch 2.5 mm

Part Number

P3728MF01-08P250HR

Length

5.00 mm

Working Height

4.00 mm

Pin Amount

8.00 Pins

Pitch

2.50

Lead Time

28

Rated Current

1

4.1 mm, 16 Pins, Non Standard Connectors, mm Working Height, Pitch 3 mm

Part Number

P5106FL01-16A300MR

Length

4.10 mm

Pin Amount

16.00 Pins

Pitch

3.00

Lead Time

28

Rated Current

2

7.35 mm, 16 Pins, Non Standard Connectors, 6.15 mm Working Height, Pitch 3 mm

Part Number

P5106MP01-16A300MR

Length

7.35 mm

Working Height

6.15 mm

Pin Amount

16.00 Pins

Pitch

3.00

Lead Time

28

Rated Current

2

5.10/4.90/5.30 mm, 11 Pins, Non Standard Connectors, 4.30/4.30/4.30 mm Working Height, Pitch 3 mm

Part Number

P5311MF02-11A300MR

Pin Amount

11.00 Pins

Pitch

3.00

Lead Time

28

Rated Current

1

5.6 mm, 8 Pins, Non Standard Connectors, 4.4 mm Working Height, Pitch 2.3 mm

Part Number

P3395MP03-08C230MR

Length

5.60 mm

Working Height

4.40 mm

Pin Amount

8.00 Pins

Pitch

2.30

Lead Time

28

Rated Current

1

6.65 mm, 6 Pins, Non Standard Connectors, 5.18 mm Working Height, Pitch 2.4 mm

Part Number

P2197MP01-06C240MR

Length

6.65 mm

Working Height

5.18 mm

Pin Amount

6.00 Pins

Pitch

2.40

Lead Time

28

Rated Current

2

6.5 mm, 9 Pins, Non Standard Connectors, 5.2 mm Working Height, Pitch 2.54 mm

Part Number

P2839MF01-09F254MR

Length

6.50 mm

Working Height

5.20 mm

Pin Amount

9.00 Pins

Pitch

2.54

Lead Time

28

Rated Current

1

7.5 mm, 9 Pins, Non Standard Connectors, 6.2 mm Working Height, Pitch 2.54 mm

Part Number

P2879MF01-09F254MR

Length

7.50 mm

Working Height

6.20 mm

Pin Amount

9.00 Pins

Pitch

2.54

Lead Time

28

Rated Current

1

5.9 mm, 12 Pins, Non Standard Connectors, 4.7 mm Working Height, Pitch 3.2 mm

Part Number

P2976MF01-12A415HR

Length

5.90 mm

Working Height

4.70 mm

Pin Amount

12.00 Pins

Pitch

3.20

Lead Time

28

Rated Current

2

6.1 mm, 12 Pins, Non Standard Connectors, 4.8 mm Working Height, Pitch 2.5 mm

Part Number

P3303MF01-12A250MR

Length

6.10 mm

Working Height

4.80 mm

Pin Amount

12.00 Pins

Pitch

2.50

Lead Time

28

Rated Current

1

6.2 mm, 6 Pins, Non Standard Connectors, 5.2 mm Working Height, Pitch 2.3 mm

Part Number

R175AA05-06B200RR

Length

6.20 mm

Working Height

5.20 mm

Pin Amount

6.00 Pins

Pitch

2.30

Lead Time

28

Rated Current

1.5

6.2 mm, 6 Pins, Non Standard Connectors, 5.2 mm Working Height, Pitch 2.3 mm

Part Number

R175AA08-06B200RR

Length

6.20 mm

Working Height

5.20 mm

Pin Amount

6.00 Pins

Pitch

2.30

Lead Time

28

Rated Current

2
