8 Different Pogo Pin Types [Design & Buy] - C.C.P. Contact Probes

Filters

Ball Point Connectors

P5982PP05, 8.45mm Working Height Ball Point Pogo Pin

Part Number

P5982PP05

Length

9.45 mm

Working Height

8.45 mm

Lead Time

28

Rated Current

1

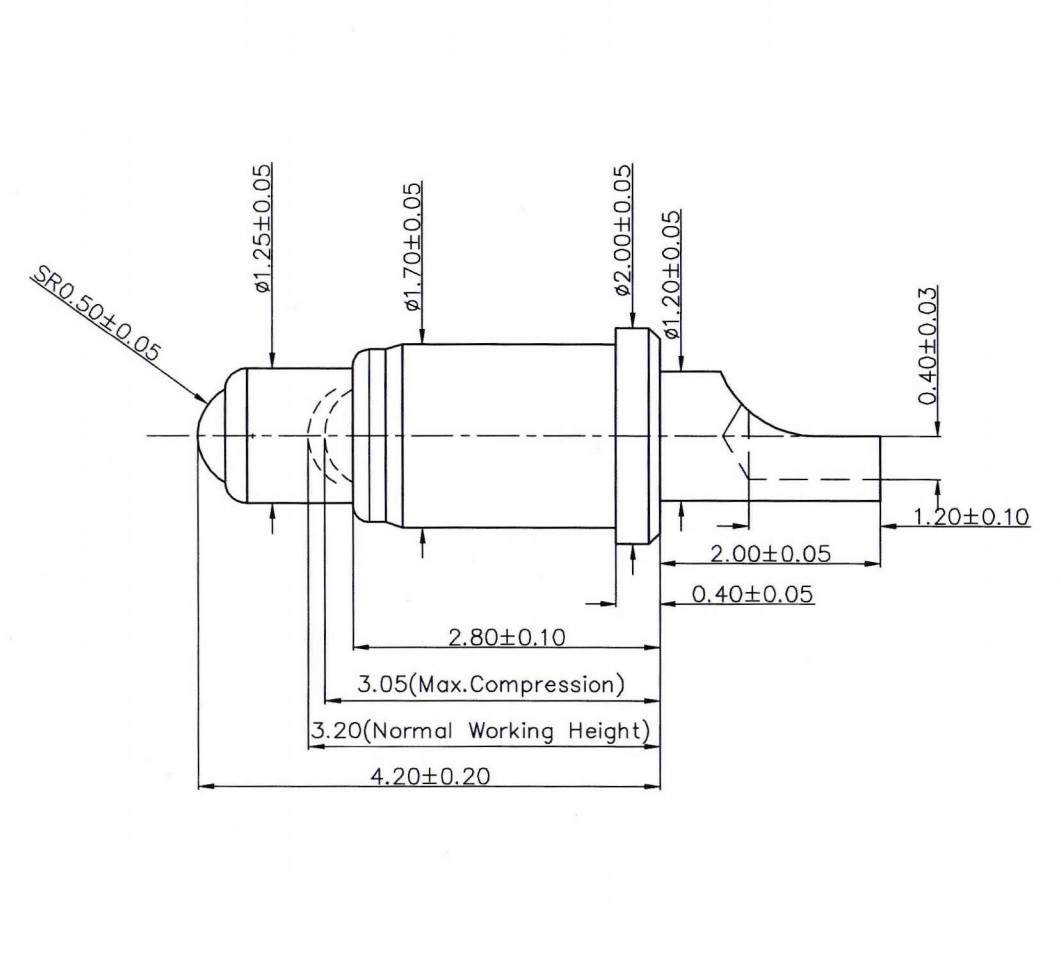

P5079PP05, 3.2mm Working Height Ball Point Pogo Pin

Part Number

P5079PP05

Length

4.20 mm

Working Height

3.20 mm

Lead Time

28

Rated Current

2

P5079FP06, Ballpoint Connector, Working Height 3.4mm

Part Number

P5079FP06

Length

4.00 mm

Working Height

3.40 mm

Lead Time

28

Rated Current

2

P07319PP2, Ball Point Pogo Pin, 7.8mm Working Height

Part Number

P07319PP2

Length

8.40 mm

Working Height

7.80 mm

Lead Time

28

Rated Current

3

14 mm, Ball Point Rolling Pin, 12 mm Working Height

Part Number

P07404FP8

Length

14.00 mm

Working Height

12.00 mm

Pin Amount

1.00 Pins

Pitch

0.00

Lead Time

28

Rated Current

1

13.75 mm, Ball Point Pin, 11.75 mm Working Height

Part Number

P07404FP6

Length

13.75 mm

Working Height

11.75 mm

Pin Amount

1.00 Pins

Pitch

0.00

Lead Time

28

Rated Current

1

9.95 mm, Ball Point Pin, 8.95 mm Working Height

Part Number

P07404FP3

Length

9.95 mm

Working Height

8.95 mm

Pin Amount

1.00 Pins

Lead Time

28

Rated Current

1

P5079FP04 3.5 mm, Ball Point Pin, 2.5 mm Working Height

Part Number

P5079FP04

Length

3.50 mm

Working Height

2.90 mm

Pin Amount

1.00 Pins

Lead Time

28

Rated Current

2

9.45 mm, 3 Pins, Ball Point Connectors, 8.45 mm Working Height, Pitch 4.96 mm

Part Number

P5982MP05-03C500HR

Length

9.45 mm

Working Height

8.45 mm

Pin Amount

3.00 Pins

Pitch

4.96

Lead Time

28

Rated Current

1

11.6 mm, Ball Point Pin, 10.6 mm Working Height

Part Number

P6353PP02

Length

11.60 mm

Working Height

10.60 mm

Pin Amount

1.00 Pins

Pitch

0.00

Lead Time

28

Rated Current

2
