C.C.P. Contact Probes Co., LTD.

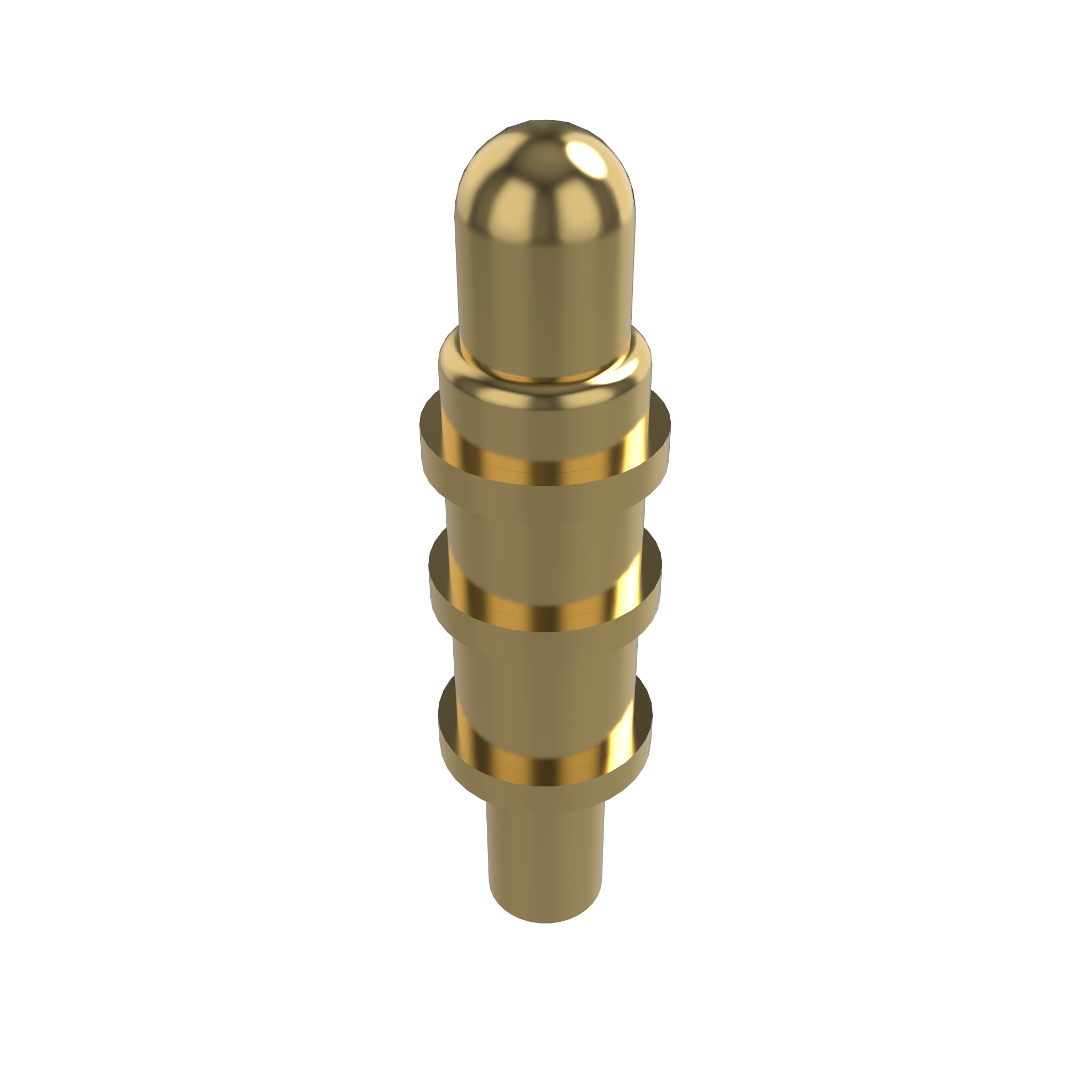

11.4 mm, 1 Pin, 6.9 mm Working Height, P07376PH2
11.4 mm, 1 Pin, 6.9 mm Working Height, P07376PH2
| Category |
Single Pogo Pins
|
| Part Number | P07376PH2 |
| Length | 8.40 |
| Working Height | 6.90 |
| Pin Direction | Vertical |
| Pin Tail | Tail |
| Pin Amount | 1 |
| Rated Current | 3 |
| Max Outer Diameter (mm) | 2.90 |
| Contact Resistance | 50 mΩ |
| Datasheet | P07376PH2.pdf |
| 3D CAD | P07376PH2.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Gold |
| Barrel Base | Brass |
| Barrel Plating | Gold |
| Spring Base | SUS |
| Rated Current | 3 A |
| Rated Voltage | 30 V |
| Contact Resistance | 50 mΩ |
| Spring Force | 90 g ± 20% |
| Life Cycle | 10000 |
Description
P07376PH2 is the non ball point pin twin of P07319PP2 with the same dimensions.
