C.C.P. Contact Probes Co., LTD.

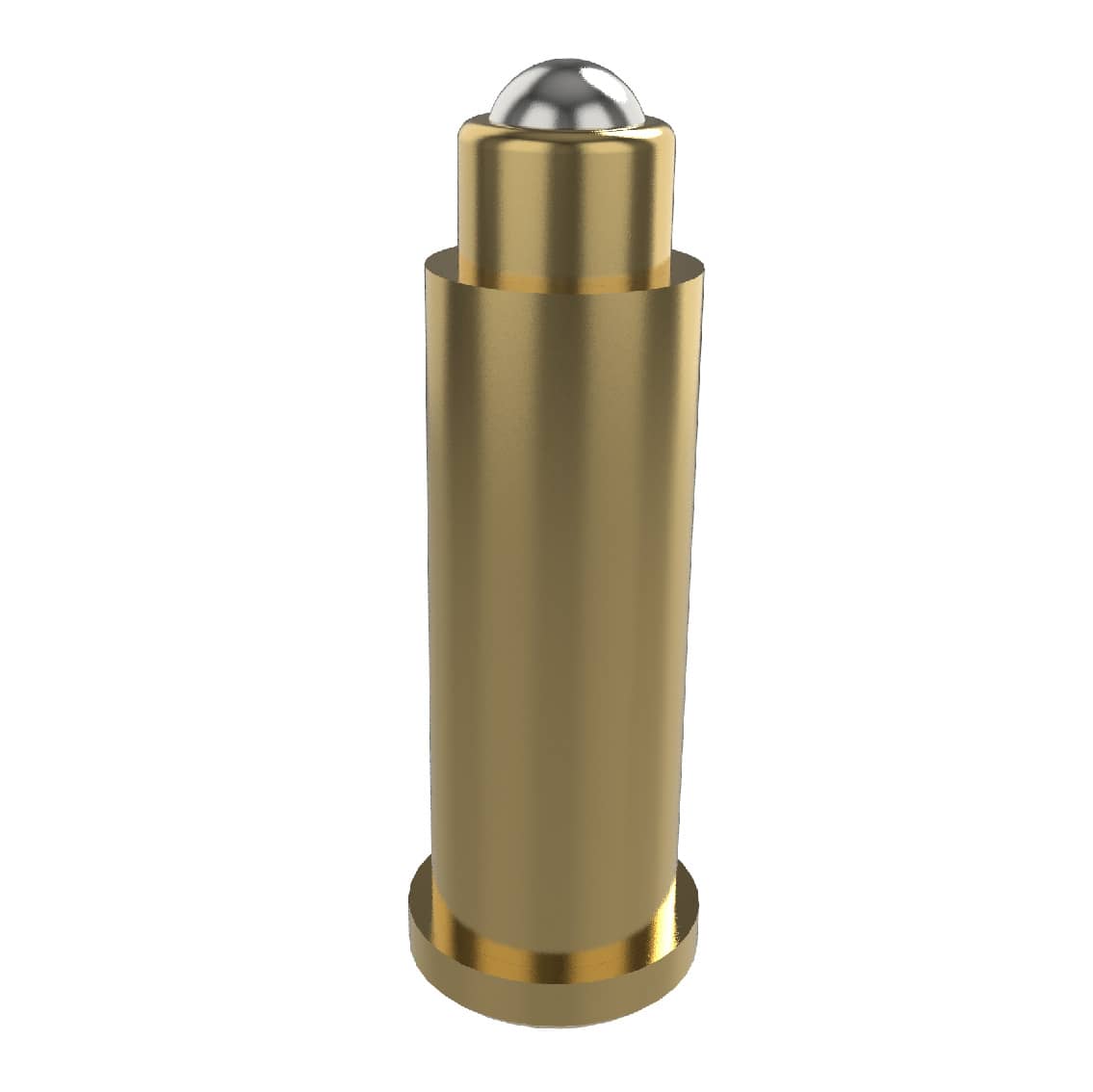

12.5 mm, 1 Pins, 9 mm Working Height, P07887PH1
12.5 mm, 1 Pins, 9 mm Working Height, P07887PH1
| Category |
Single Pogo Pins
|
| Part Number | P07887PH1 |
| Length | 12.50 |
| Working Height | 12.50 |
| Pin Direction | Vertical |
| Pin Tail | Soldering Cup |
| Pin Amount | 1 |
| Rated Current | 1 |
| Contact Resistance | 50 mΩ |
| Datasheet | P07887PH1.pdf |
| 3D CAD | P07887PH1.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Nickle/Au |
| Barrel Base | Brass |
| Barrel Plating | Nickle/Au |
| Spring Base | SUS |
| Housing | n/a |
| Rated Current | 1 A |
| Rated Voltage | 12 V |
| Contact Resistance | 50 mΩ |
| Spring Force | 120 g ± 20% |
| Life Cycle | 10000 |
