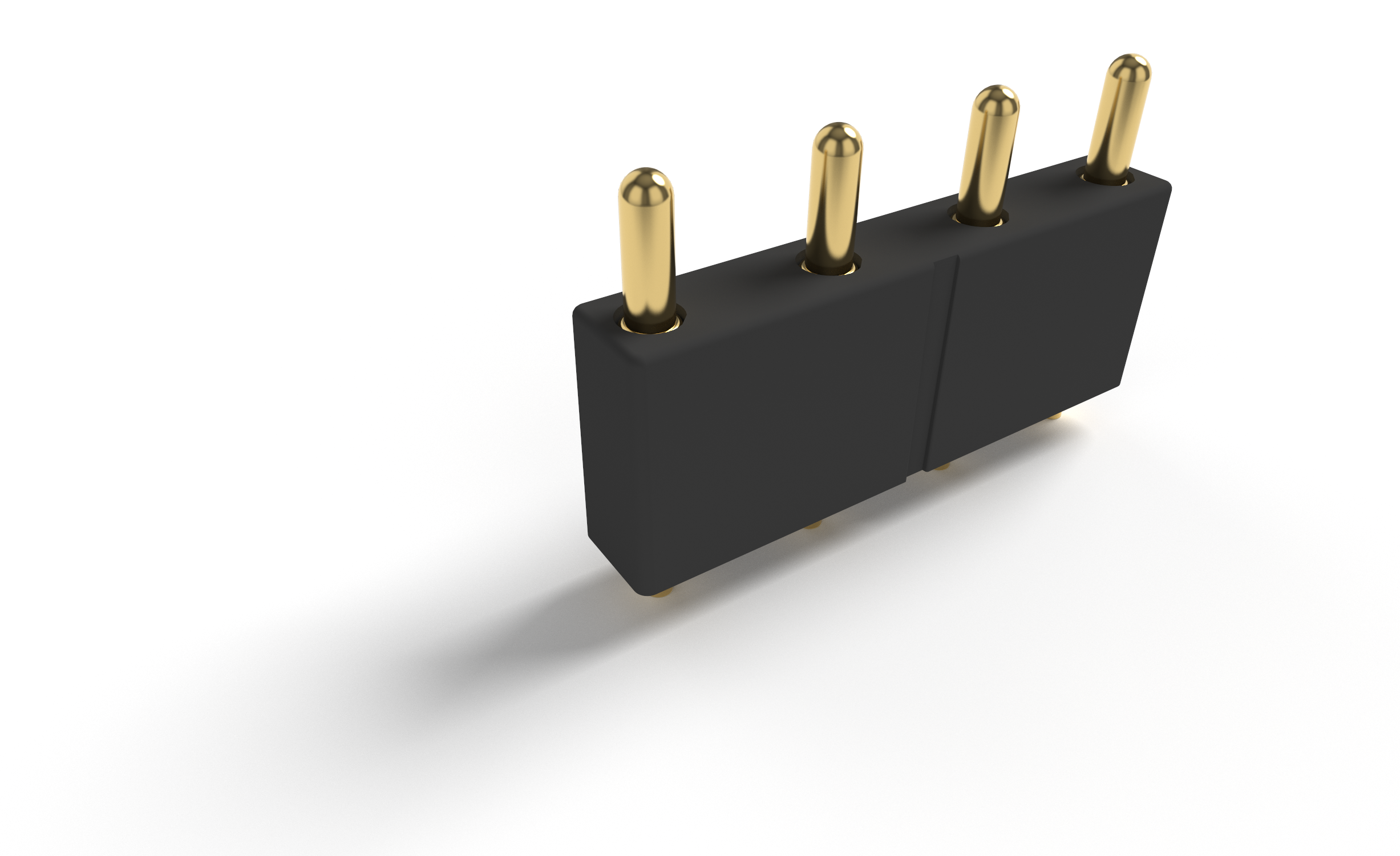

12.9 mm, 4 Pins, Non Standard Connectors, 12.1 mm Working Height, Pitch 6.5 mm

12.9 mm, 4 Pins, Non Standard Connectors, 12.1 mm Working Height, Pitch 6.5 mm
Category
Non Standard Connectors
Part Number P3136MP01-04B650MR
Length 12.90
Working Height 12.10
Pin Direction Vertical
Pin Tail Soldering Cup
Pin Amount 4
Pitch 6.50
Rated Current 1
Contact Resistance 50 mΩ
Get a Quotation
Lead Time 28

Product Specifications

Plunger Base Brass
Plunger Plating Nickel/Au
Barrel Base Brass
Barrel Plating Nickel/Au
Spring Base SUS304
Housing HTN
Rated Current 1 A
Rated Voltage 12 V
Contact Resistance 50 mΩ
Spring Force 105 g ± 20%
Life Cycle 10000

Description

P3136MP01-04B650MR
