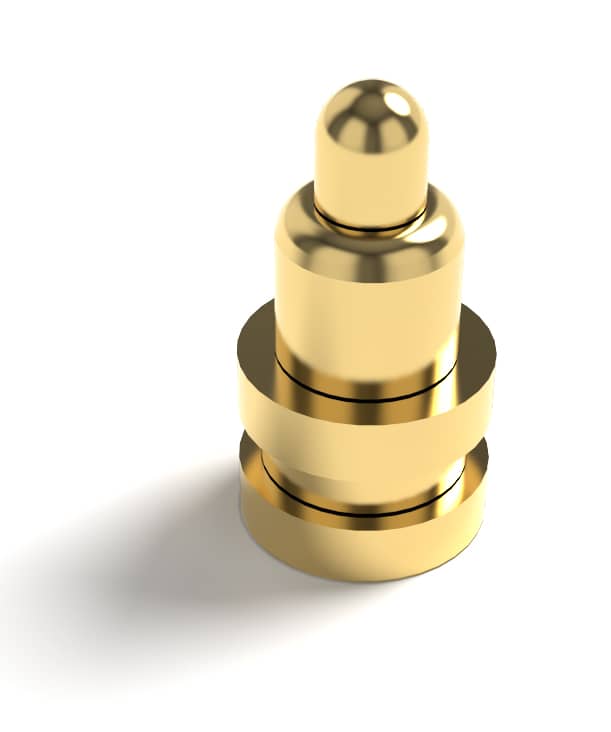

3.2 mm, 1 Pin, 2.7 mm Working Height, P2616FH03
3.2 mm, 1 Pin, 2.7 mm Working Height, P2616FH03
| Category |
Single Pogo Pins
|
| Part Number | P2616FH03 |
| Length | 3.20 |
| Working Height | 2.70 |
| Pin Direction | Vertical |
| Pin Amount | 1 |
| Pitch | 0.00 |
| Rated Current | 1.5 |
| Contact Resistance | 50 mΩ |
| Datasheet | P2616FH03-Model.pdf |
| 3D CAD | P2616FH03.stp |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | CuSnZn/Au |
| Barrel Base | Brass |
| Barrel Plating | CuSnZn/Au |
| Spring Base | SWP |
| Housing | n/a |
| Rated Current | 1.5 A |
| Rated Voltage | 12 V |
| Contact Resistance | 50 mΩ |
| Spring Force | 80 g ± 20% |
| Life Cycle | 10000 |
