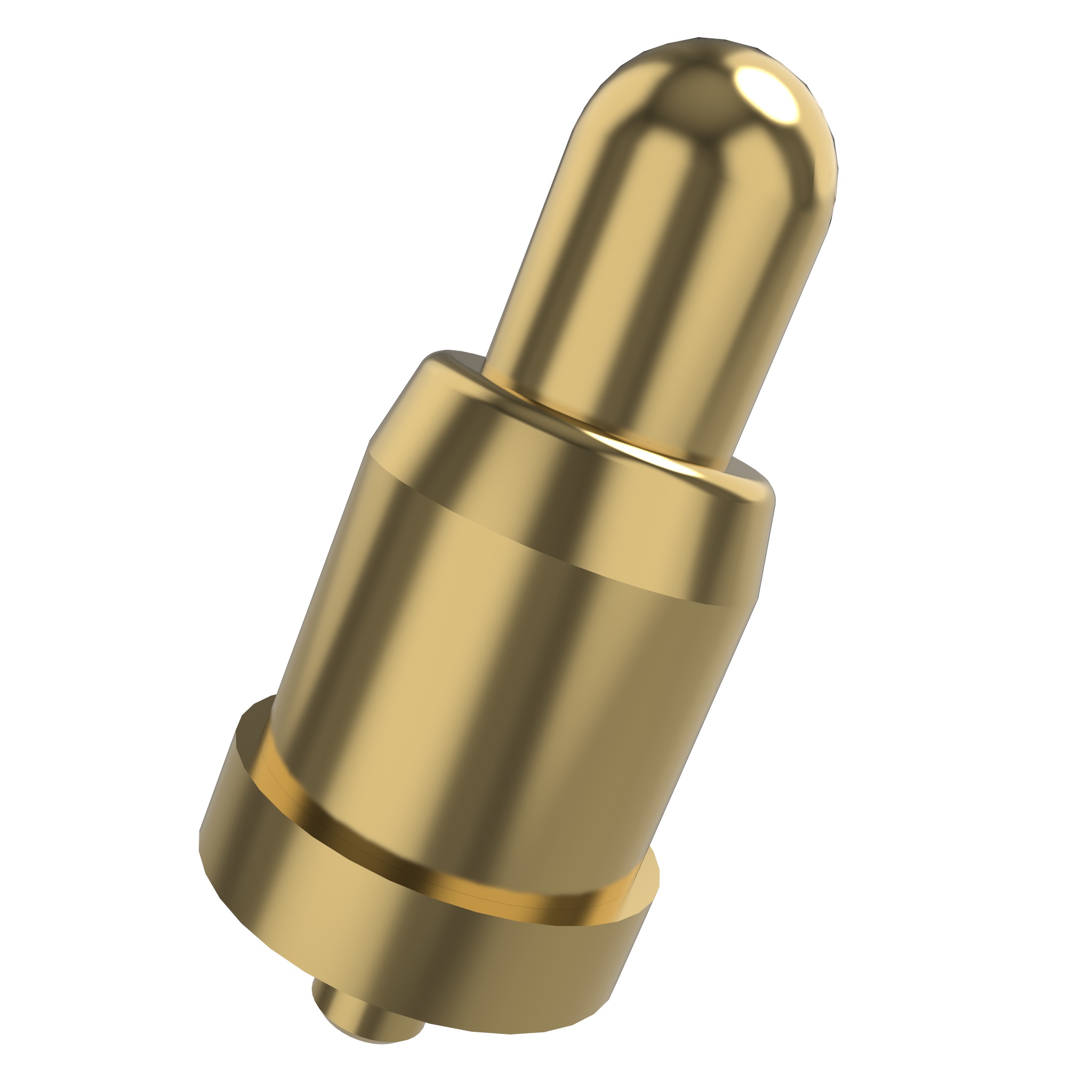

3.5mm, 1 Pin, 2.7mm Working Height, P2128PP01
3.5mm, 1 Pin, 2.7mm Working Height, P2128PP01
| Category |
Single Pogo Pins
|
| Part Number | P2128PP01 |
| Length | 3.50 |
| Working Height | 2.70 |
| Pin Direction | Vertical |
| Pin Tail | Tail |
| Pin Amount | 1 |
| Pitch | 0.00 |
| Rated Current | 1 |
| Max Outer Diameter (mm) | 1.80 |
| Contact Resistance | 30 mΩ |
| Datasheet | P2128PP01.pdf |
| 3D CAD | P2128PP01.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass C3604 |
| Plunger Plating | Gold |
| Barrel Base | Brass C3604 |
| Barrel Plating | Gold |
| Spring Base | SWP |
| Rated Current | 1 A |
| Rated Voltage | 12 V |
| Contact Resistance | 30 mΩ |
| Spring Force | 130 g ± 20% |
| Life Cycle | 10000 |
Description
Low profile 3.5mm pogo pin with through hole soldering tail. This spring loaded pin has a relatively high spring force, which makes it suitable also for environments with vibration.
