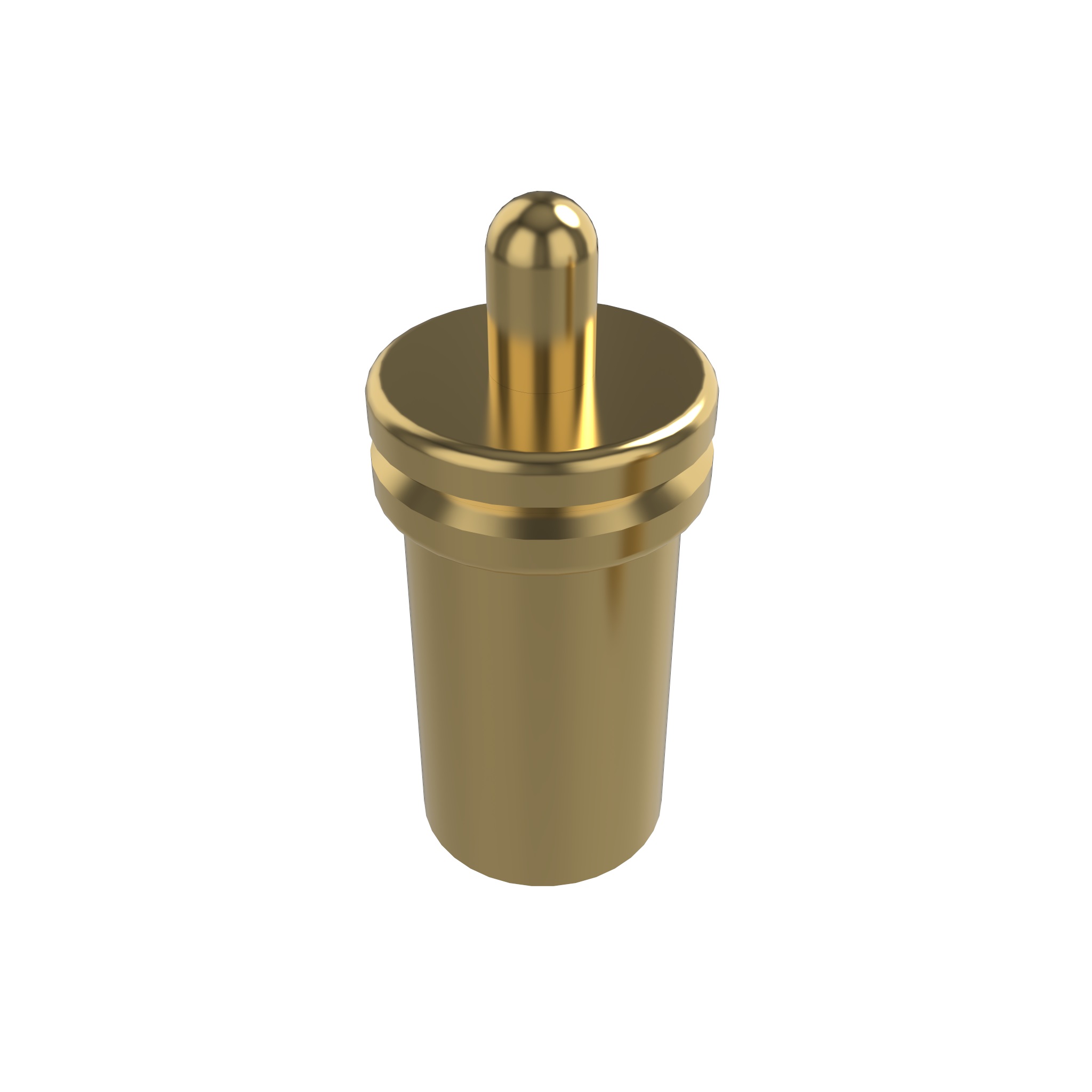

4.35 mm Pogo Pin, 3.85 mm Working Height, P6330FP02-R
4.35 mm Pogo Pin, 3.85 mm Working Height, P6330FP02-R
| Category |
Single Pogo Pins
|
| Part Number | P6330FP02-R |
| Length | 4.35 |
| Working Height | 3.85 |
| Pin Direction | Vertical |
| Pin Tail | Flat |
| Pin Amount | 1 |
| Rated Current | 3 |
| Max Outer Diameter (mm) | 1.98 |
| Contact Resistance | 100 mΩ |
| Datasheet | P6330FP02-R.pdf |
| 3D CAD | P6330FP02-R.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Gold |
| Barrel Base | Brass |
| Barrel Plating | Gold |
| Spring Base | SUS301 |
| Rated Current | 3 A |
| Rated Voltage | 12 V |
| Contact Resistance | 100 mΩ |
| Spring Force | 75 g ± 20% |
| Life Cycle | 10000 |
Description
This short profile Pogo Pin with a working height of 3.85mm (0.152 inch) can be used as a replacement part for Mill-Max 0921-0-15-20-76-14-11-0.
