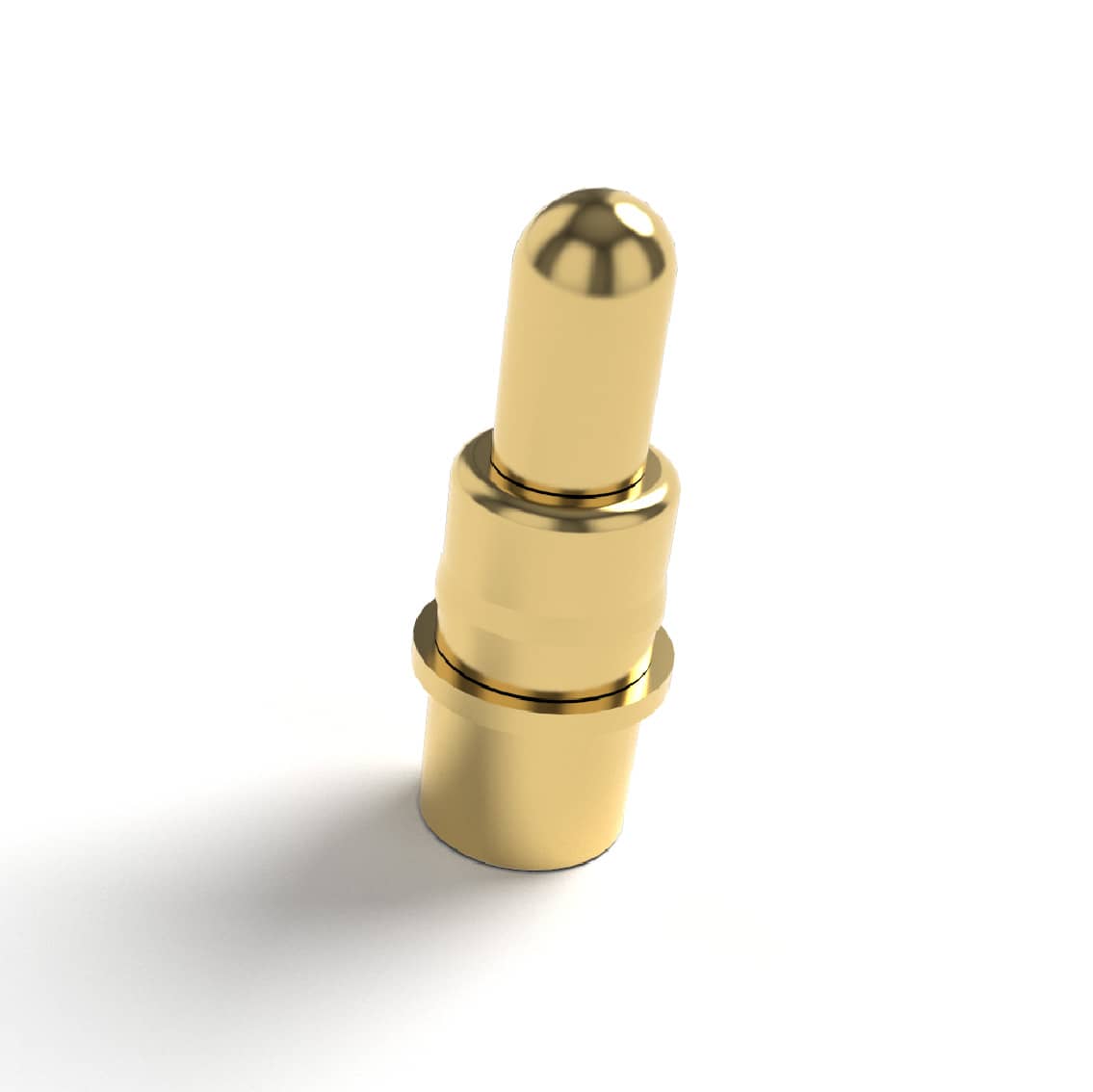

4.7 mm, 1 Pin, 3.3 mm Working Height, P3697PP01
4.7 mm, 1 Pin, 3.3 mm Working Height, P3697PP01
| Category |
Single Pogo Pins
|
| Part Number | P3697PP01 |
| Length | 4.70 |
| Working Height | 3.30 |
| Pin Direction | Vertical |
| Pin Amount | 1 |
| Pitch | 0.00 |
| Rated Current | 1 |
| Contact Resistance | 100 mΩ |
| Datasheet | P3697PP01-Model.pdf |
| 3D CAD | P3697PP01.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Nickel/Au |
| Barrel Base | Brass |
| Barrel Plating | Nickel/Au |
| Spring Base | SUS |
| Housing | n/a |
| Rated Current | 1 A |
| Rated Voltage | 10 V |
| Contact Resistance | 100 mΩ |
| Spring Force | 100 g ± 20% |
| Life Cycle | 10000 |
