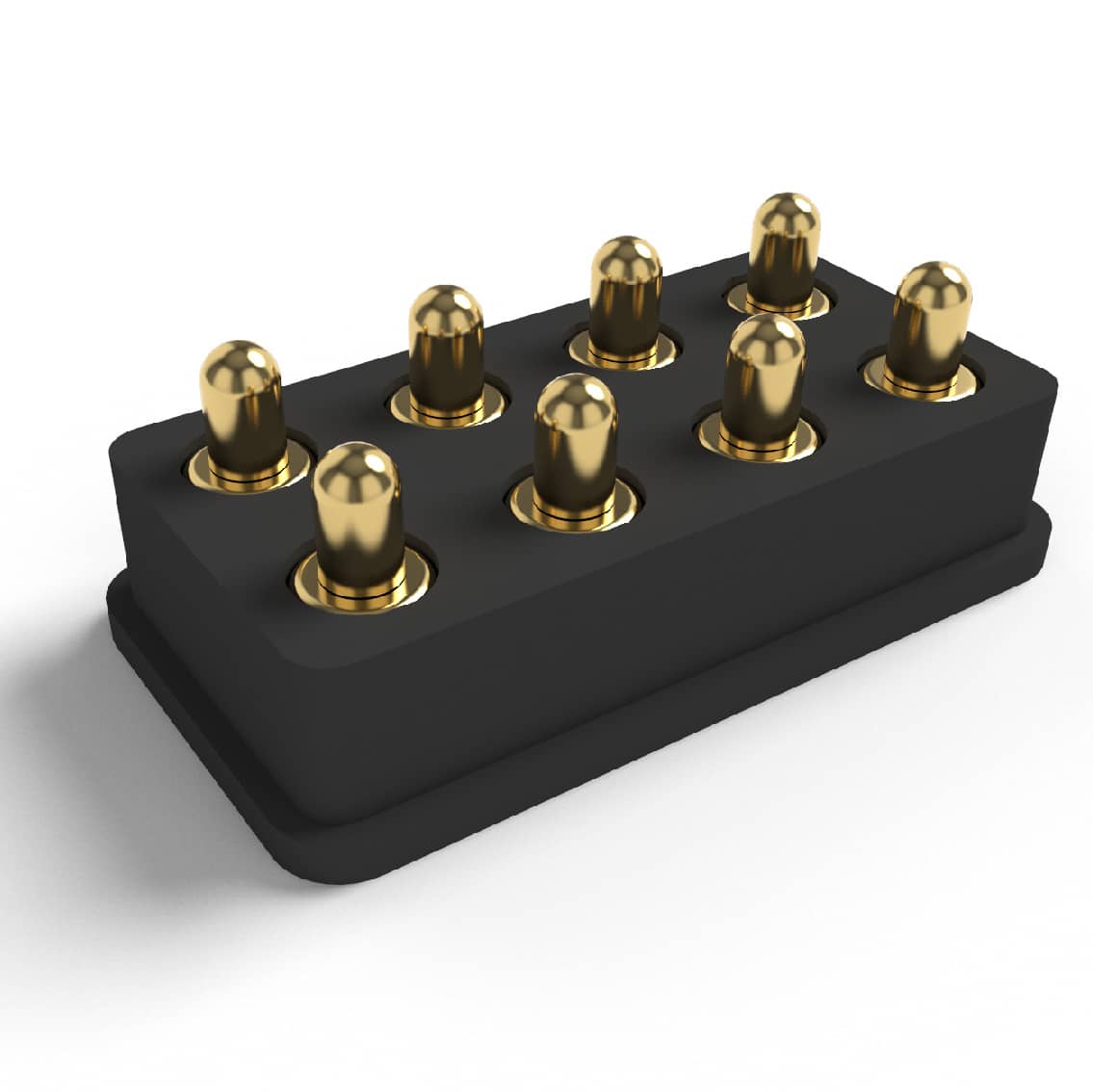

5 mm, 8 Pins, Non Standard Connectors, 4 mm Working Height, Pitch 2.5 mm

5 mm, 8 Pins, Non Standard Connectors, 4 mm Working Height, Pitch 2.5 mm
Category
Non Standard Connectors
Part Number P3728MF01-08P250HR
Length 5.00
Working Height 4.00
Pin Direction Vertical
Pin Amount 8
Pitch 2.50
Rated Current 1
Contact Resistance 50 mΩ
Get a Quotation
Lead Time 28

Product Specifications

Plunger Base Brass
Plunger Plating Nickle/Au
Barrel Base Brass
Barrel Plating Nickle/Au
Spring Base SUS304
Housing HTN
Rated Current 1 A
Rated Voltage 12 V
Contact Resistance 50 mΩ
Spring Force 80 g ± 20%
Life Cycle 10000

Description

P3728MF01-08P250HR
