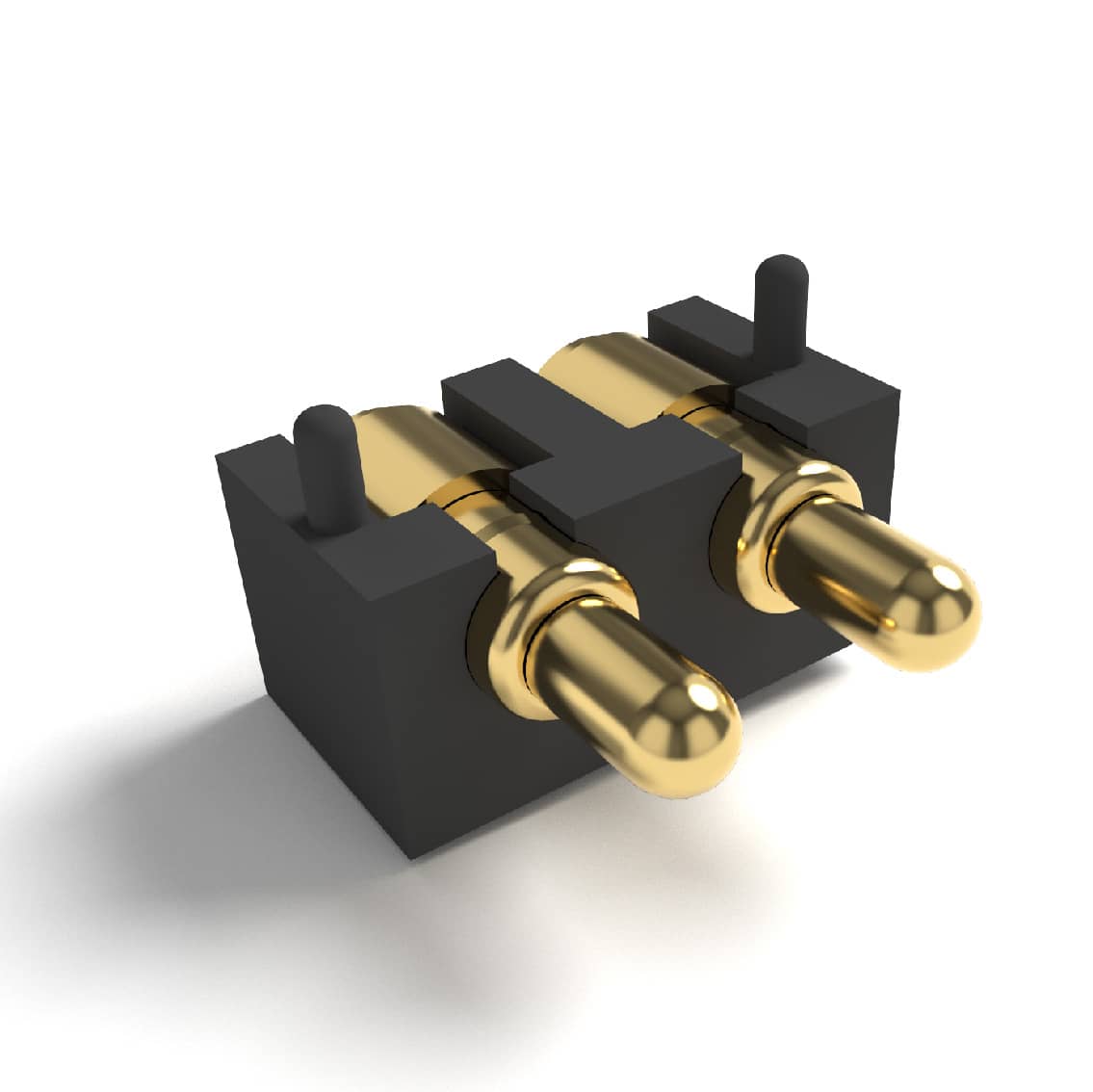

5.3 mm, 2 Pins, Non Standard Connectors, 4.3 mm Working Height, Pitch 2.5 mm

5.3 mm, 2 Pins, Non Standard Connectors, 4.3 mm Working Height, Pitch 2.5 mm
Previous Pause Next
  • 0
  • 1
Category
Non Standard Connectors
Part Number H020M0-H02B250R
Length 5.30
Working Height 4.30
Pin Direction Vertical
Pin Amount 2
Pitch 2.50
Rated Current 1
Contact Resistance 100 mΩ
Datasheet H020M0-H02B250R-Model.pdf
3D CAD H020M0-H02B250R.stp
Get a Quotation
Lead Time 28

Product Specifications

Plunger Base Brass
Plunger Plating Nickel/Au
Barrel Base Brass
Barrel Plating Nickel/Au
Spring Base 120
Housing HTN
Rated Current 1 A
Rated Voltage 12 V
Contact Resistance 100 mΩ
Spring Force 120 g ± 20%
Life Cycle 10000

Description

H020M0-H02B250R
