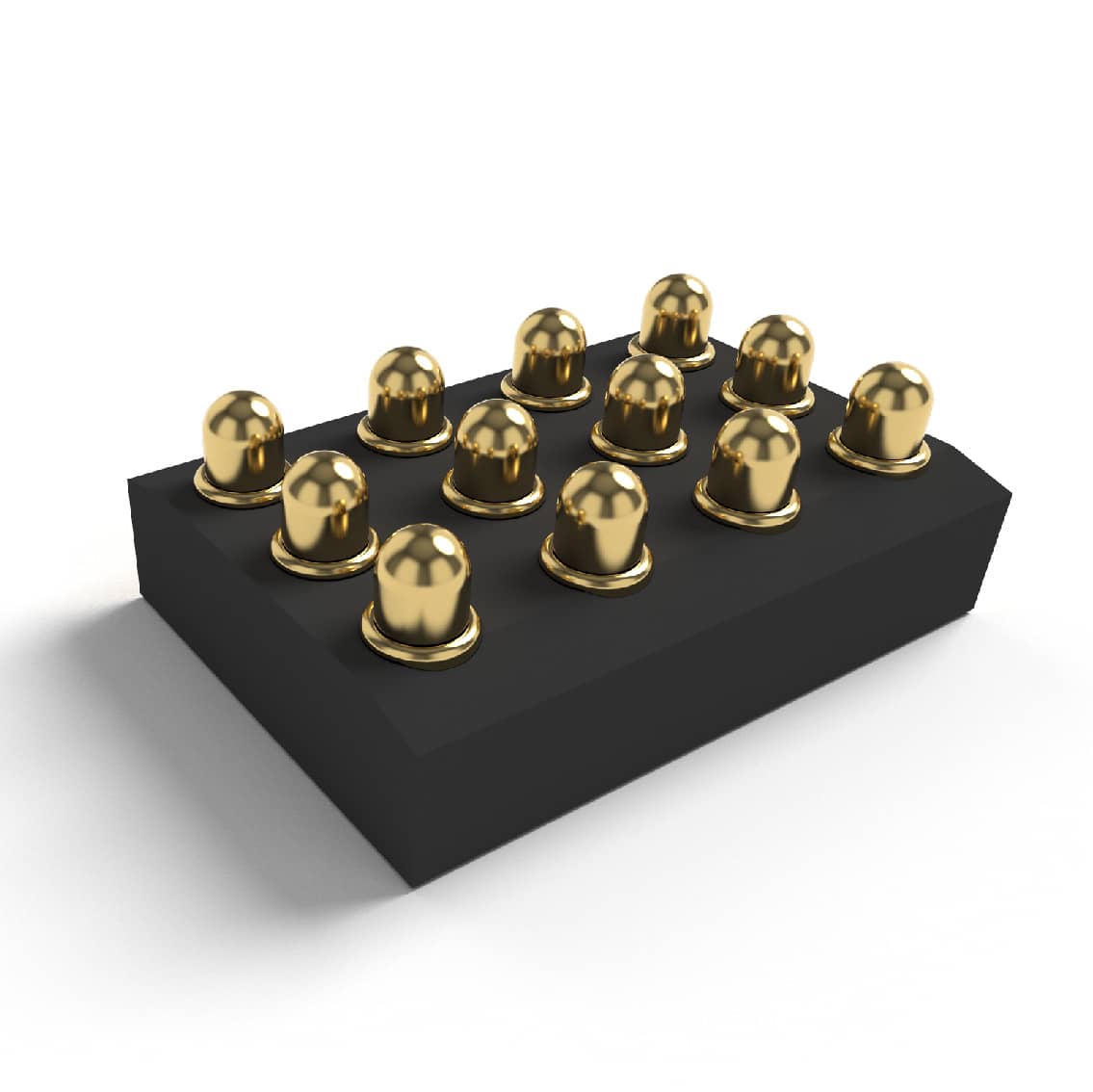

5.9 mm, 12 Pins, Non Standard Connectors, 4.7 mm Working Height, Pitch 3.2 mm

5.9 mm, 12 Pins, Non Standard Connectors, 4.7 mm Working Height, Pitch 3.2 mm
Category
Non Standard Connectors
Part Number P2976MF01-12A415HR
Length 5.90
Working Height 4.70
Pin Direction Vertical
Pin Tail Soldering Cup
Pin Amount 12
Pitch 3.20
Rated Current 2
Contact Resistance 50 mΩ
Get a Quotation
Lead Time 28

Product Specifications

Plunger Base Brass
Plunger Plating Nickle/Au
Barrel Base Brass
Barrel Plating Nickle/Au
Spring Base 110
Housing LCP
Rated Current 2 A
Rated Voltage 12 V
Contact Resistance 50 mΩ
Spring Force 110 g ± 20%
Life Cycle 10000

Description

P2976MF01-12A415HR
