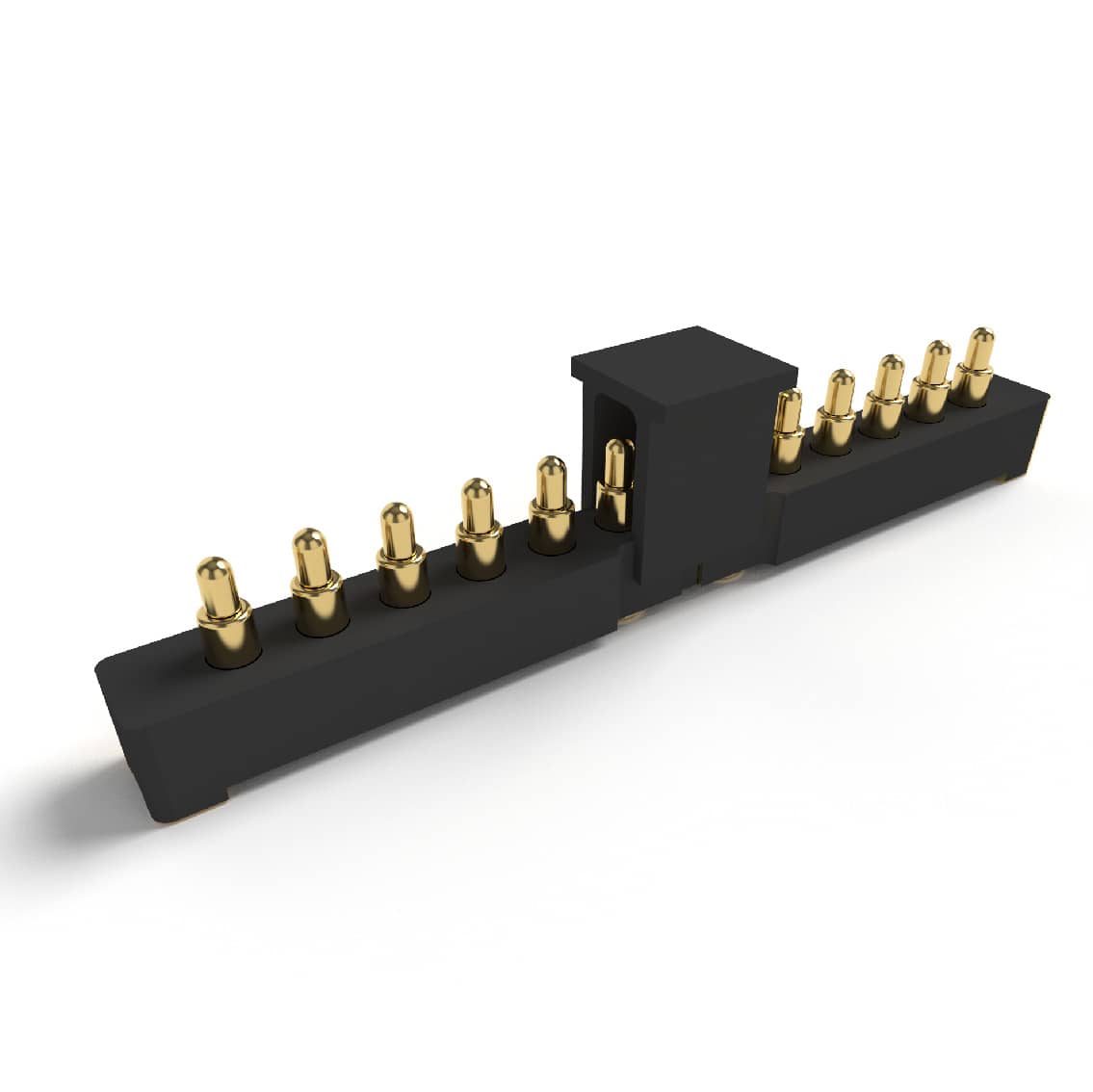

6.1 mm, 12 Pins, Non Standard Connectors, 4.8 mm Working Height, Pitch 2.5 mm

6.1 mm, 12 Pins, Non Standard Connectors, 4.8 mm Working Height, Pitch 2.5 mm
Previous Pause Next
  • 0
  • 1
Category
Non Standard Connectors
Part Number P3303MF01-12A250MR
Length 6.10
Working Height 4.80
Pin Direction Vertical
Pin Tail Soldering Cup
Pin Amount 12
Pitch 2.50
Rated Current 1
Contact Resistance 100 mΩ
Datasheet P3303MF01-12A250MR-Model.pdf
3D CAD P3303MF01-12A250MR.stp
Get a Quotation
Lead Time 28

Product Specifications

Plunger Base Brass
Plunger Plating Nickle/Pu
Barrel Base Brass
Barrel Plating Nickle/Au
Spring Base 60
Housing HTN
Rated Current 1 A
Rated Voltage 12 V
Contact Resistance 100 mΩ
Spring Force 60 g ± 20%
Life Cycle 10000

Description

P3303MF01-12A250MR
