C.C.P. Contact Probes Co., LTD.

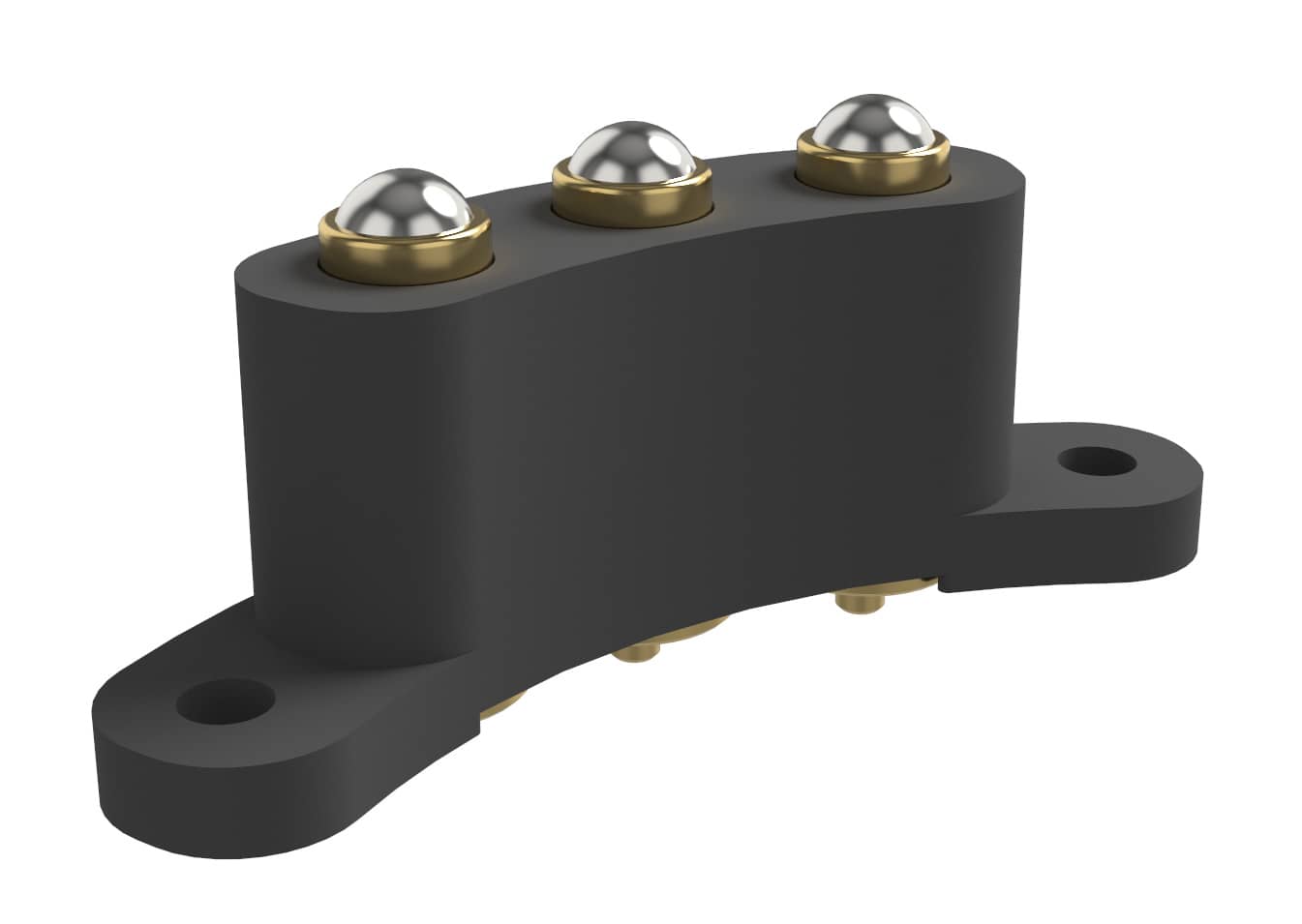

9.45 mm, 3 Pins, Ball Point Connectors, 8.45 mm Working Height, Pitch 4.96 mm
9.45 mm, 3 Pins, Ball Point Connectors, 8.45 mm Working Height, Pitch 4.96 mm
| Category |
Ball Point Connectors
|
| Part Number | P5982MP05-03C500HR |
| Length | 9.45 |
| Working Height | 8.45 |
| Pin Direction | Vertical |
| Pin Tail | Soldering Cup |
| Pin Amount | 3 |
| Pitch | 4.96 |
| Rated Current | 1 |
| Contact Resistance | 100 mΩ |
| Datasheet | P5982MP05-03C500HR-Model.pdf |
| 3D CAD | P5982MP05-03C500HR.stp |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Nickle/Au |
| Barrel Base | Brass |
| Barrel Plating | Nickle/Au |
| Spring Base | SUS |
| Housing | HTN |
| Rated Current | 1 A |
| Rated Voltage | 12 V |
| Contact Resistance | 100 mΩ |
| Spring Force | 60 g ± 20% |
| Life Cycle | 10000 |
Description
P5982MP05-03C500HR
Ballpoint design connector for Rolling and Rotating Connection. Lateral Movement Application
Lateral Movement Application
