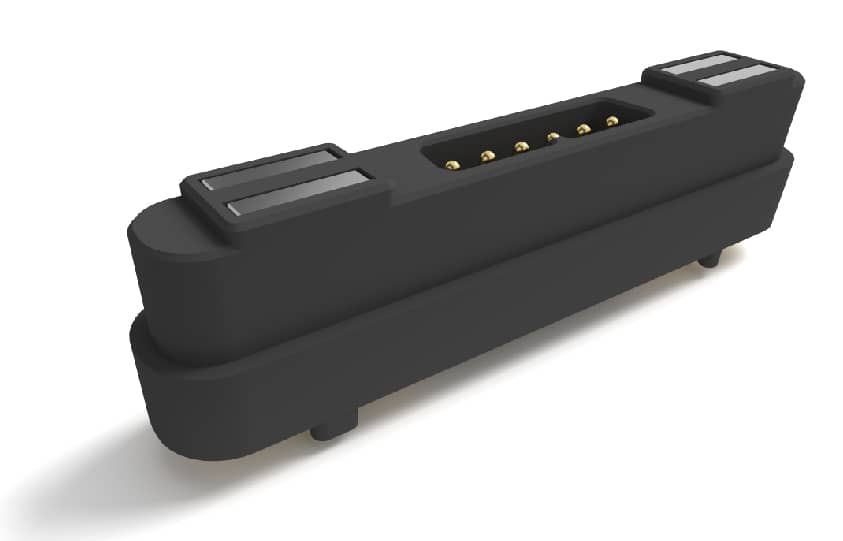

9.7 mm, 6 Pins, Magnetic Connectors, 1 mm Working Height, Pitch 1.8 mm
9.7 mm, 6 Pins, Magnetic Connectors, 1 mm Working Height, Pitch 1.8 mm
| Category |
Magnetic Connectors
|
| Part Number | P2578MP01-06C180HT |
| Length | 9.70 |
| Working Height | 1.00 |
| Pin Direction | Vertical |
| Pin Amount | 6 |
| Pitch | 1.80 |
| Rated Current | 3 |
| Contact Resistance | 50 mΩ |
| Datasheet | P2578MP01-06C180HT-Model.pdf |
| 3D CAD | P2578MP01-06C180HT.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Nickle/Au |
| Barrel Base | Brass |
| Barrel Plating | Nickle/Au |
| Housing | LCP |
| Rated Current | 3 A |
| Rated Voltage | 12 V |
| Contact Resistance | 50 mΩ |
| Spring Force | 70 g ± 20% |
| Life Cycle | 10000 |
