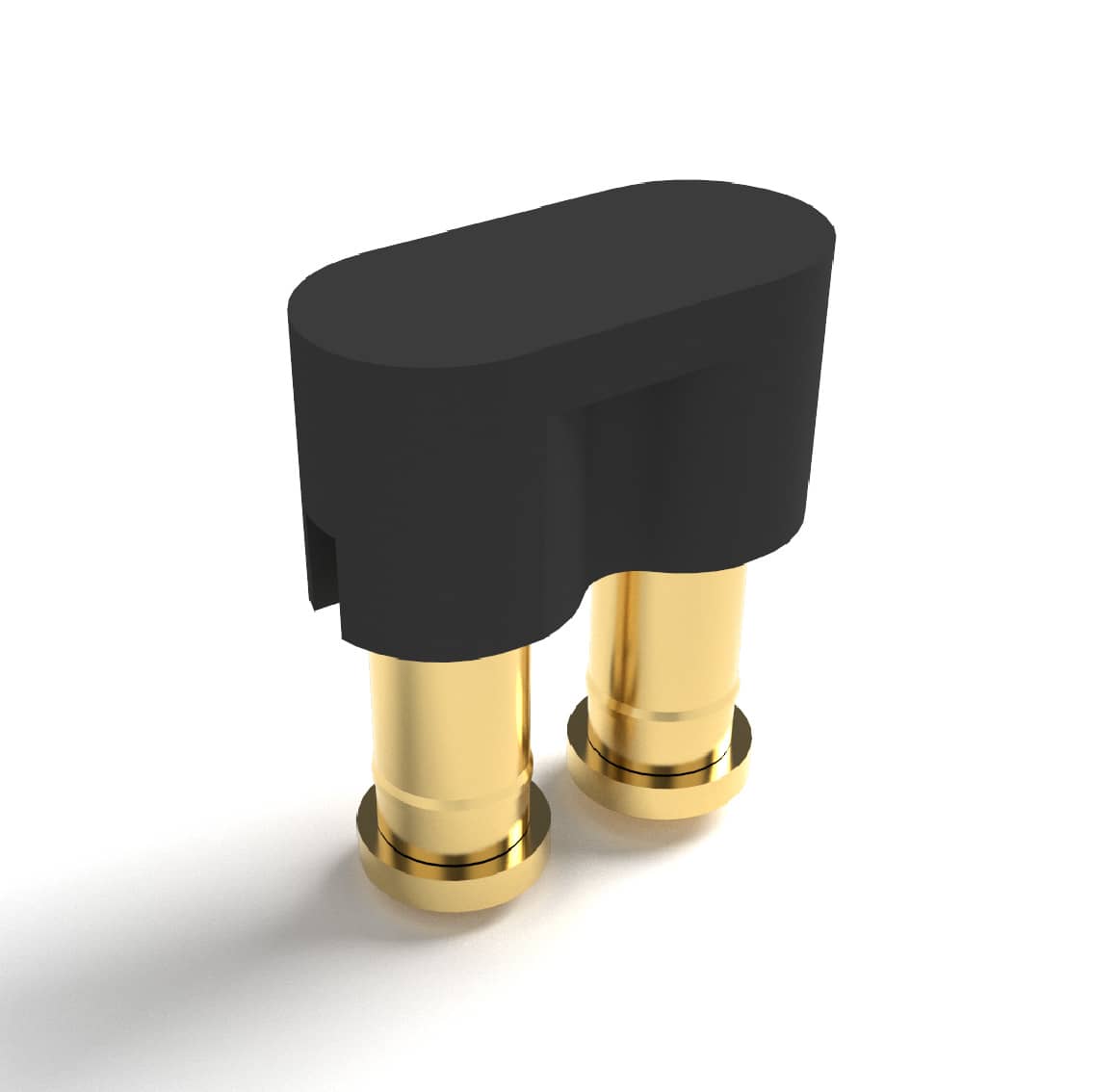

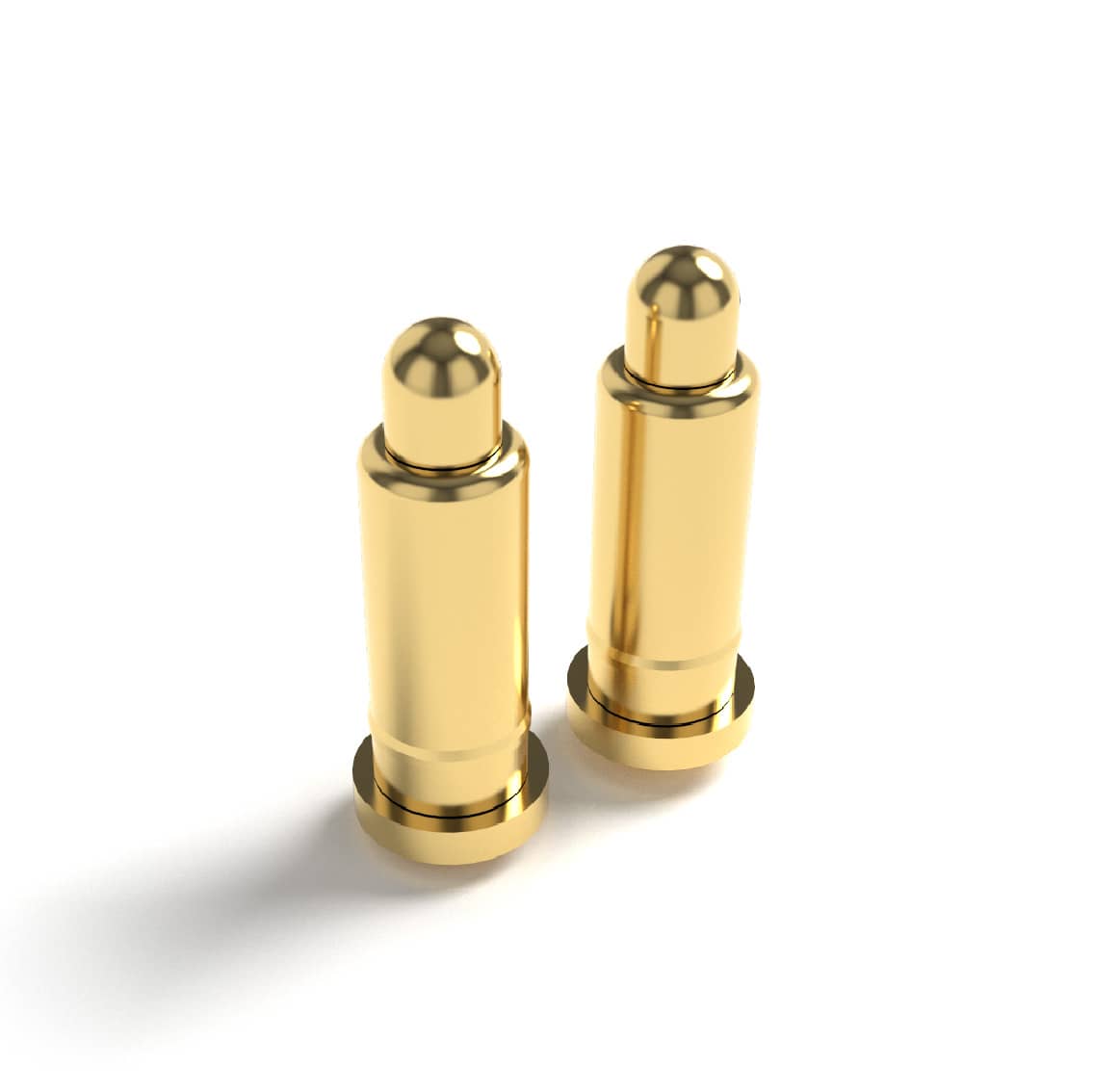

5.2 mm, 2 Pins, Non Standard Connectors, 4.5 mm Working Height, Pitch 2.5 mm

5.2 mm, 2 Pins, Non Standard Connectors, 4.5 mm Working Height, Pitch 2.5 mm
Previous Pause Next
  • 0
  • 1
  • 2
Category
Non Standard Connectors
Part Number F1835AA01-02A250CR
Length 5.20
Working Height 4.50
Pin Direction Vertical
Pin Tail Flat
Pin Amount 2
Pitch 2.50
Rated Current 1
Contact Resistance 100 mΩ
Datasheet F1835AA01-02A250CR-Model.pdf
3D CAD F1835AA01-02A250CR.STEP
Get a Quotation
Lead Time 28

Product Specifications

Plunger Base Brass
Plunger Plating Nickel/Au
Barrel Base Brass
Barrel Plating Nickel/Au
Spring Base 60
Housing HTN
Rated Current 1 A
Rated Voltage 12 V
Contact Resistance 100 mΩ
Spring Force 60 g ± 20%
Life Cycle 10000

Description

F1835AA01-02A250CR
