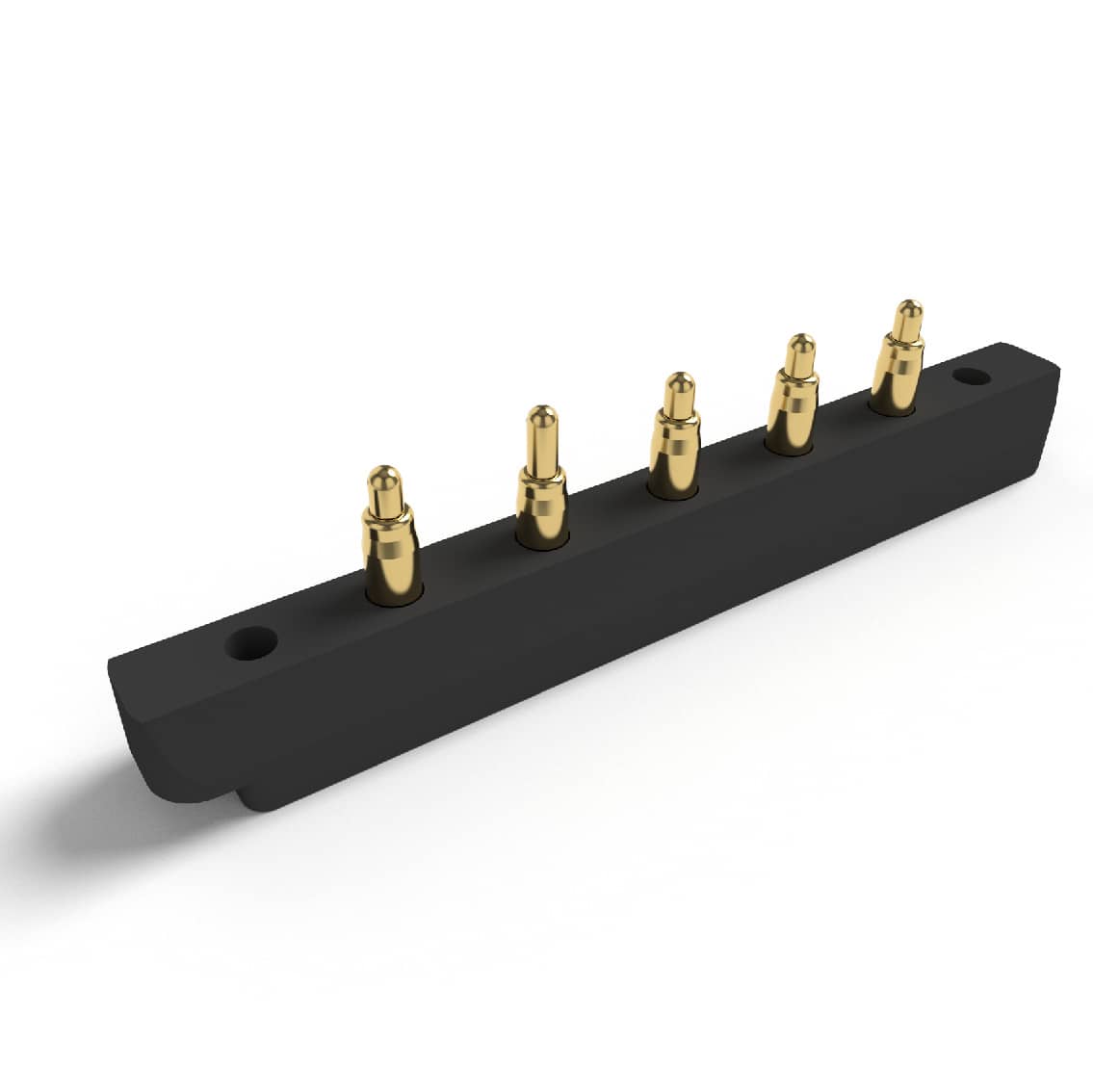

5.95/5.65 mm, 5 Pins, Non Standard Connectors, 5.1 mm Working Height, Pitch 3.5 mm
| Category |
Non Standard Connectors
|
| Part Number |
P5362MF01-05A350MR |
| Working Height |
5.10 |
| Pin Direction |
Vertical
|
| Pin Tail |
Soldering Cup
|
| Pin Amount |
5 |
| Pitch |
3.50 |
| Rated Current |
2 |
| Contact Resistance |
50 mΩ |
Product Specifications
| Plunger Base |
Brass |
| Plunger Plating |
Nickle/Au |
| Barrel Base |
Brass |
| Barrel Plating |
Nickle/Au |
| Spring Base |
SUS304 |
| Housing |
HTN |
| Rated Current |
2 A |
| Rated Voltage |
12 V |
| Contact Resistance |
50 mΩ |
| Spring Force |
70 g ± 20% |
| Life Cycle |
10000 |
Description
P5362MF01-05A350MR
C.C.P. Contact Probes Co., LTD.
