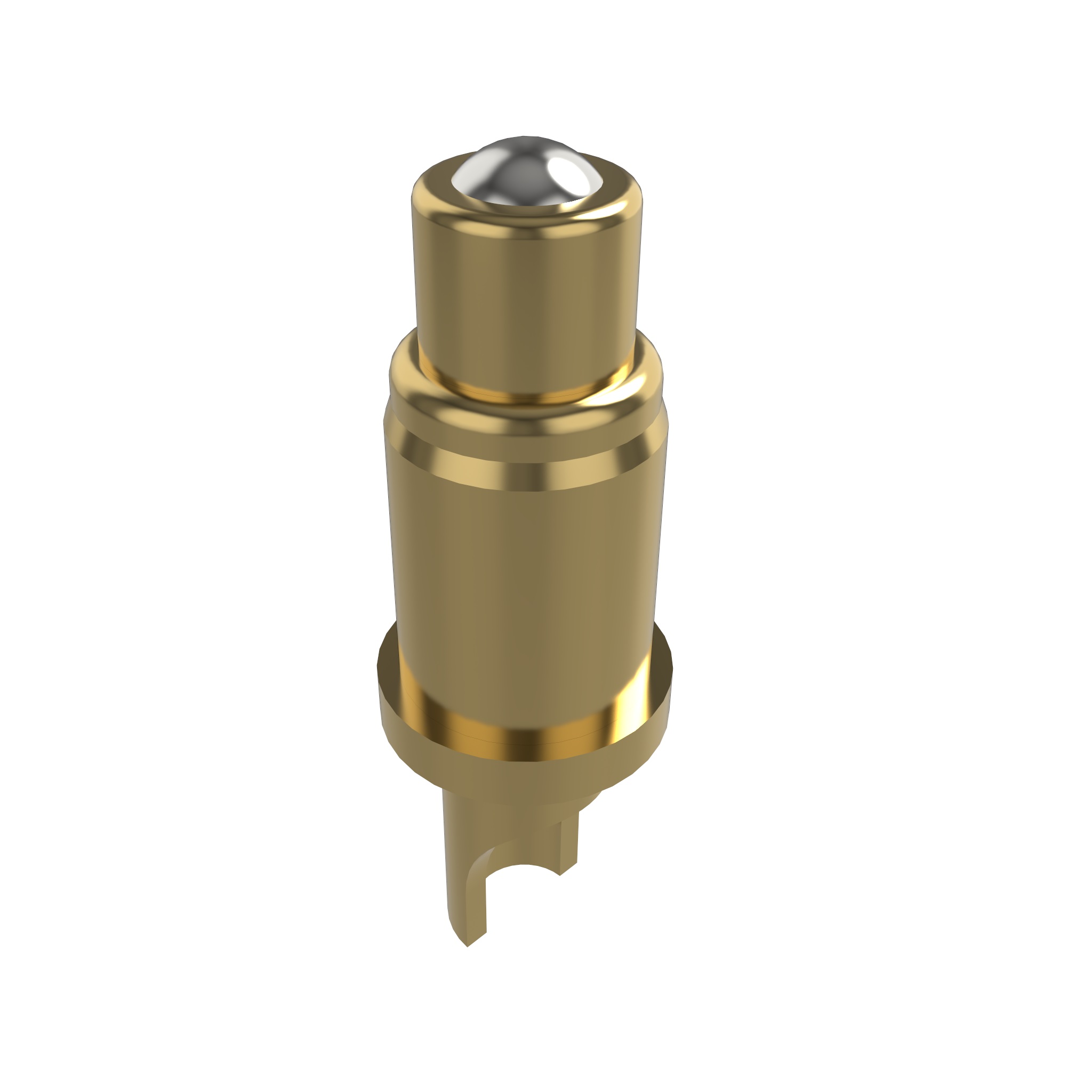

P5079PP05, 3.2mm Working Height Ball Point Pogo Pin
P5079PP05, 3.2mm Working Height Ball Point Pogo Pin
| Category |
Ball Point Connectors
|
| Part Number | P5079PP05 |
| Length | 4.20 |
| Working Height | 3.20 |
| Pin Direction | Vertical |
| Pin Tail | Soldering Cup |
| Rated Current | 2 |
| Max Outer Diameter (mm) | 2.00 |
| Contact Resistance | 100 mΩ |
| Datasheet | P5079PP05 D.0.pdf |
| 3D CAD | P5079PP05.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Gold |
| Barrel Base | Brass |
| Barrel Plating | Gold |
| Spring Base | SUS |
| Rated Current | 2 A |
| Rated Voltage | 12 V |
| Contact Resistance | 100 mΩ |
| Spring Force | 80 g ± 20% |
| Life Cycle | 2000 |
